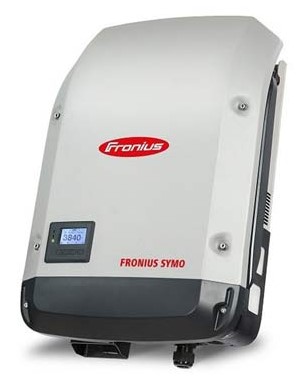

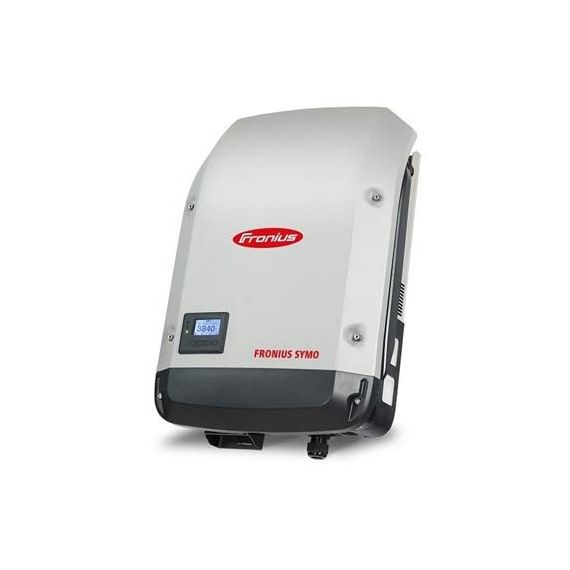

Fronius Symo 15.0-M (Second Hand)
Features:
- transformerless
- reverse polarity protection
- DC disconnector
- integrated data logger and web server
- integrated wifi module
- simple mounting system
- low weight and compact size
- indoor and outdoor mounting (protection class IP 66)
Weight: 48 Kilograms
Warranty: 5yrs
- transformerless
- reverse polarity protection
- DC disconnector
- integrated data logger and web server
- integrated wifi module
- simple mounting system
- low weight and compact size
- indoor and outdoor mounting (protection class IP 66)
Weight: 48 Kilograms
Warranty: 5yrs
| Maximum input voltage | 1000V DC |
| Minimum input voltage | 200V DC |
| MPP Voltage range | 320 - 800V |
| Max DC power input (peak) | 22.5kW |
| Max efficiency | 98.1% |
| Rated power output | 15,000W |
| Max current output | 21.7A |
| Operating temperature range | -25 to +60° |
| Protection Class | IP66 |
| Cooling | regulated air |
| Dimensions (mm) | 725(H) x 510(W) x 225(D) |
| Net weight | 43.4kg |
| Model | SYMO 15.0-3-M |
| Manufacturer | Fronius International GmbH |
