Pylontech US5000-B 48V 4.8kWh Lithium Battery Module

In stock

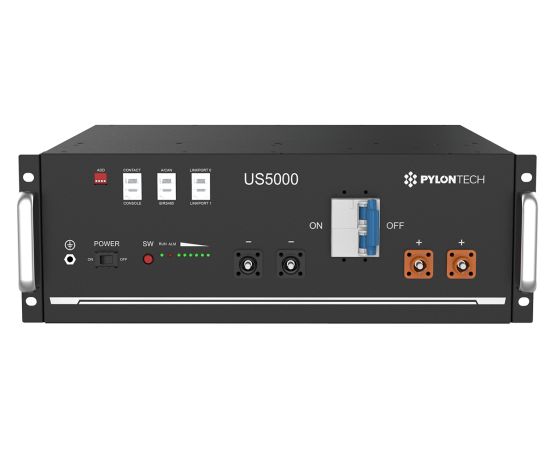

Pylontech US5000-B 48V 100Ah Rack Mounted LiFePO4 Battery Module

US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

This compact and modular battery promises more than 6000 cycles with 90% DoD
The design fits in a battery rack or can be upgraded with custom “feet”
Deliver up to 9.5KW with single module (for 15 seconds)
Modular design gives the end customers the power of choice of capacity (up to 16 modules)
Safest Lithium battery chemistry (Iron Phosphate)
Compatible with most of the available Hybrid inverters
Simple buckle fixing minimize the installation time and cost
Does not require a separate Battery Management Unit
Safety Cert.TüV CE UN38.3

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.


  • 4RU size (161mm tall)
  • Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
  • Usable capacity of 4.56kWh @ 48 vDC
  • Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
  • Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
  • Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
  • Compatible with many available Hybrid inverters
  • Backwards Compatible with existing US series products
  • Pre-charge function to protect ESS from surge currents
  • Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
  • Communication Protocols: CAN, RS485
  • 15+ Year Design Life
  • 10 year Warranty

Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.

Nominal Voltage (Vdc)  48
Nominal Capacity(Wh)  4800
Usable Capacity(Wh)  4560
Dimension(mm)  442*420*161
Weight(kg)  39.7
Charge/Discharge Current (A)    (Recommend) 80*
(Max. Continuous) 100*
(Peak 1) 101~120@15min
(Peak 2 ) 121~200@15sec
Communication Port  RS485,CAN
Single string quantity(pcs)  16
Working Temperature/ °C  Charge 0~50
Discharge -10~50
Shelf Temperature/ °C  -20~60
Short current/duration time  <2000A/1ms
IP rating of enclosure  IP20
Cooling type  Natural
Humidity  5% ~ 95%(RH) No Condensation
Altitude(M)  <4000
Design life  15+ Years (25°C/77°F)
Cycle Life  >6,000 25°C
Authentication Level  UL1973/UL9540A/IEC62619/IEC63056/ICE61000-6-2/3/UN38.3

US5000B Spec Sheet (Pylontech-US5000-B.pdf, 1,036 Kb) [Download]

US5000B Info (Pylontech-US5000-B2.pdf, 1,428 Kb) [Download]

US5000B Operation Manual (Pylontech-US5000-B3.pdf, 2,215 Kb) [Download]
