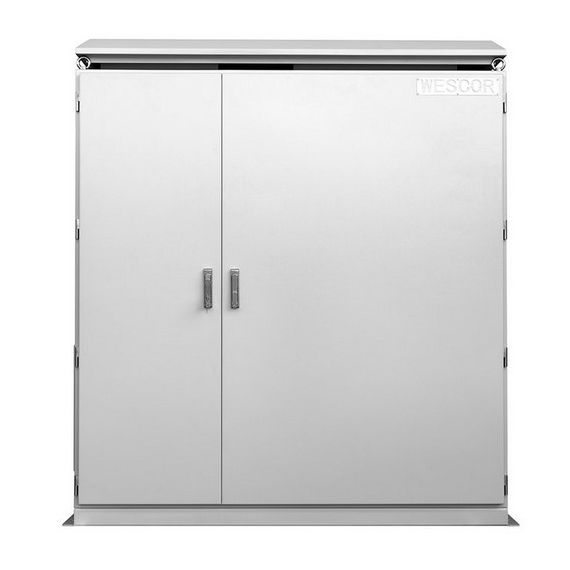

Solar Battery & Equipment Cabinet (2038X1800X585)
-
19” Rack mounts with slide-in shelves for battery module mounting, ranging from 8-12 modules
-
Universal racking system for multiple battery brands such as BYD Flex 5.0, Pylontech US3000C and US5000B
-
Indoor or outdoor installation thanks to IP protection rating and new additional rain hood
-
Fully welded construction, 3mm Aluminium
-
Stainless steel bolts and fittings installed throughout
-
Powder coated light grey finish (RAL7035)
-
Mounting pan powder coated white
-
Double front doors with segregation between battery section and equipment section
-
Robust 3-point locking system
-
Gland plates fitted internally
-
Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
-
Mounting plate can be used for inverters, chargers and all other equipment
-
Stainless steel lifting eyes on all four corners on top
-
Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
-
Document pocket on inside of door
-
Dust filters installed on inlet outlet vent
-
Ventilation fans installed as standard
-
Punched aluminium screens over all openings to prevent unwanted entry by insects
