SmartSolar Pluggable Display

CODE: SCC900650010

$51.00

In stock

Quantity:

+ −

Description

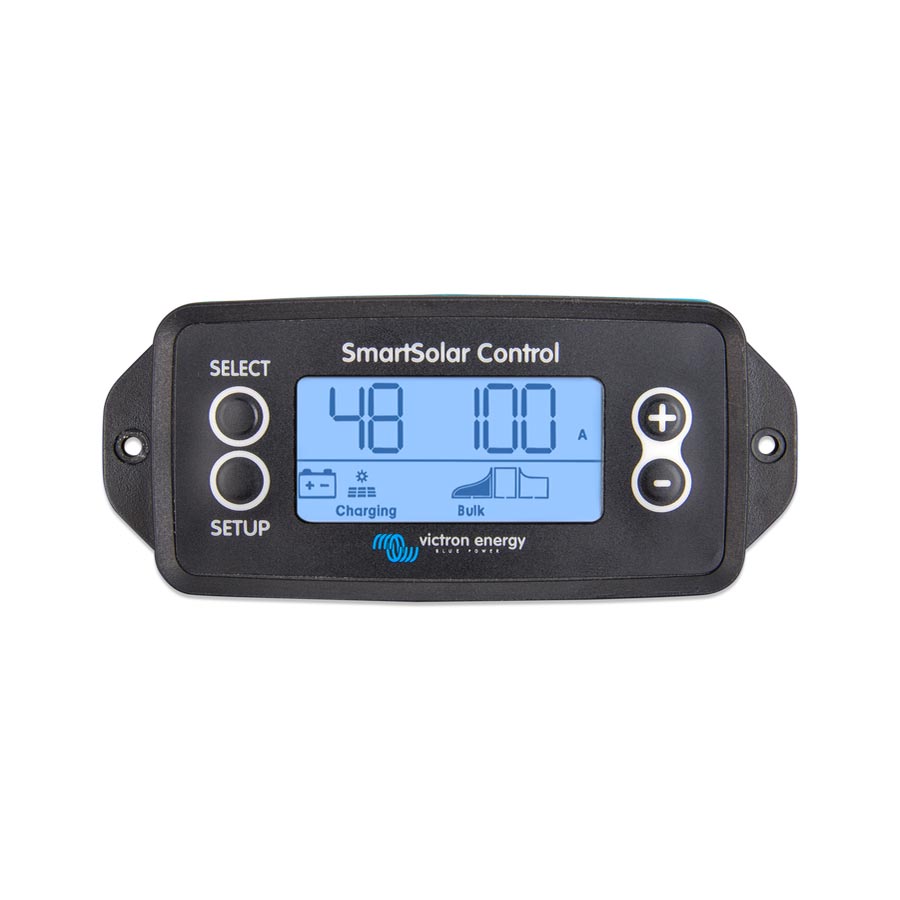

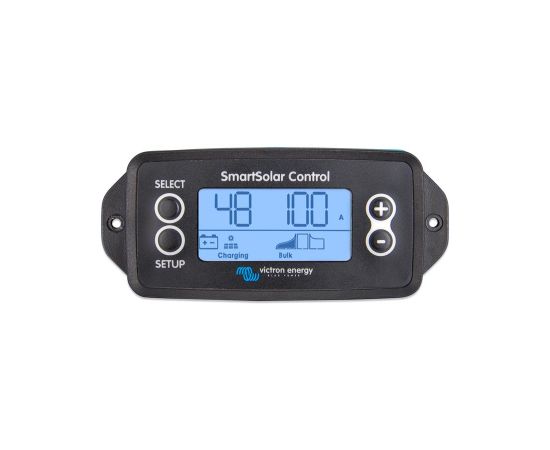

The SmartSolar Control Display is a pluggable LCD display for the SmartSolar Charge Controllers. Simply remove the rubber seal that protects the plug on the front of the controller and plug-in the display.

The SmartSolar Control display is a dedicated display for the following MPPT solar charger ranges:

SmartSolar MPPT 150/45 up to 250/100
SmartSolar MPPT 150/70 up to 250/100 VE.Can
BlueSolar MPPT 150/70 up to 250/100 VE.Can

These solar chargers can also be recognised by a small plastic cover on the front face with the text "display option".

SmartSolar_control_display_-_example_MPPT_with_and_without_display.svg

Example of a solar charger without display and with display

The display plugs directly into the front face of the solar charger. It can act as both a permanent or a temporary display. Simply remove the plastic cover that protects the display terminal on the front of the controller and then plug in the display.

The display can be used to monitor the solar charger and to view both live and historic data. The display can also be used to configure solar charger settings.

Examples of live and historic monitoring:

PV power, yield, voltage and current.
Battery voltage, current and charge stage.
Load output state and current (only available if the solar charger is equipped with a load output).
30-day historical values.
Cumulative historic values over the live of the solar charger.

Technical specifications
Installation type	Inserts into the display port on the front of a solar charger.
Suitability	Suitable for the Victron Energy 150V and 250V BlueSolar and SmartSolar MPPT solar charger range that are equipped with a display port.
Display port connector	RS232 9 pin pinout
Dimensions (w x l x h)	116mm x 50mm x 25mm
Weight	66g
