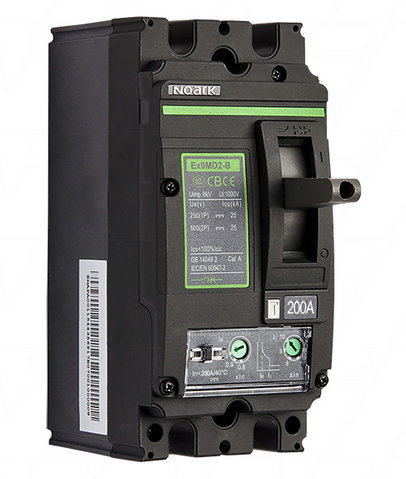

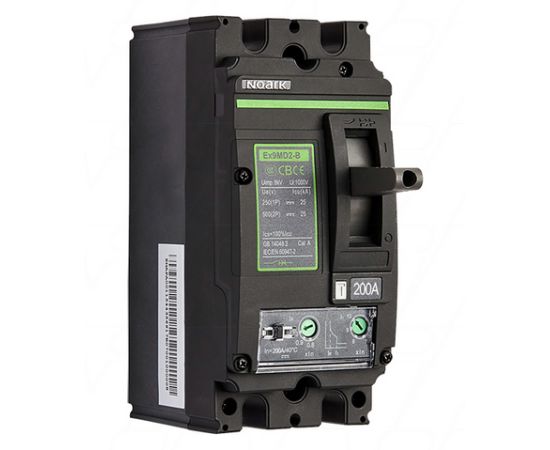

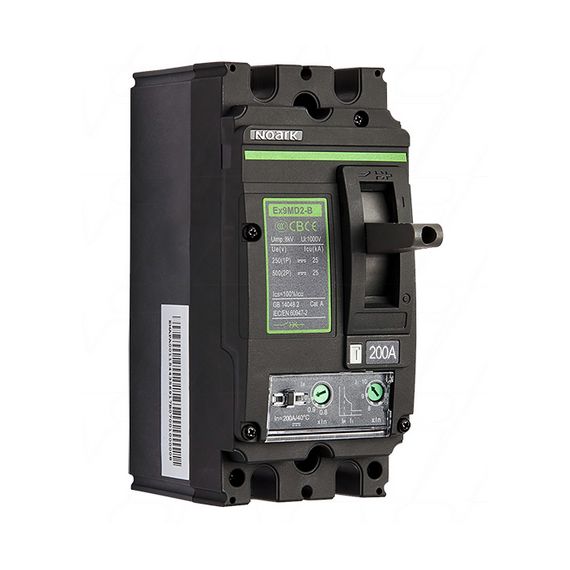

Starlink Noark Moulded Case 200A DC Circuit Breaker
Description
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
| Selling Unit | EACH | ||
| Description | N28903 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker | ||
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications | ||
| Voltage | 500V | ||
| Size | 200A | ||
| Width | 157mm | ||
| Height | 91.5mm | ||
| Length/Breadth/Depth | 70mm | ||
| Weight | 1200g | ||
Specifications
| Noark Series | EX9MD2B TM DC200 2P |
| Poles | 2 (250VDC per pole) |
| Current Rating (A) | 200A |
| Voltage (Max.) | 500VDC |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Rated Breaking Capacity | 25kA |
| Release Technology | Thermo Magnetic |
| Frame Size | 2 |
| Frame Rating | 250A |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2 |
