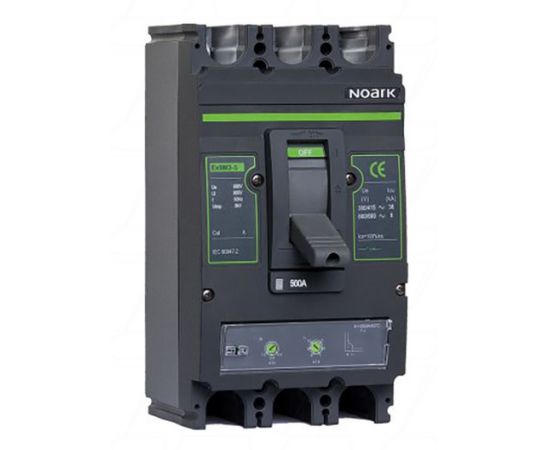

Noark Moulded Case 500A DC Circuit Breaker

Home/Offgrid Solar/Accessories & Installation/Isolation, Fusing & Circuit Protection/Noark Moulded Case 500A DC Circuit Breaker

CODE: N27019-3P-MCCB

$939.00

Out of stock

Description

Noark 750VDC EX9MD 3 Pole MCCB Circuit Breakers 315A - 800A:

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.

Features
Specifications

Noark Moulded Case High Current DC Circuit Breakers (Non-Polarized)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standards NH fuse bases.

Model No: N27019-3P-MCCB 500A/750 VDC

Selling Unit: Each

Categories: DC Circuit Breakers

Moulded Case Circuit Breakers

Noark Moulded Case Circuit Breakers

Description: N27019 MCCB EX9MD4B 500A 750V 3 Pole DC Circuit Breaker

Application: Battery Bank, Solar, Automation, Control, Telecommunications, DC Circuit applications

SPECIFICATIONS

Voltage: 750V

Brand: Noark

Size: 500A

Width: 300mm

Height: 142mm

Length/Breadth/Depth 195mm

Weight: 10200g

Noark Series: EX9MD4B TM DC500 3P

Poles: 3 (250VDC per pole)

Current Ratings (A): 500A

Voltage (Max.): 750VDC

Rated Insulation Voltage (VDC)Ui: 1000 VDC

Rated Breaking Capacity: 25kA

Release Technology: Thermo Magnetic

Frame Size: 4

Frame Rating: 630A

IP Rating (All sided/terminals): IP40 / 20

Standards: IEC/EN/AS60947-2
