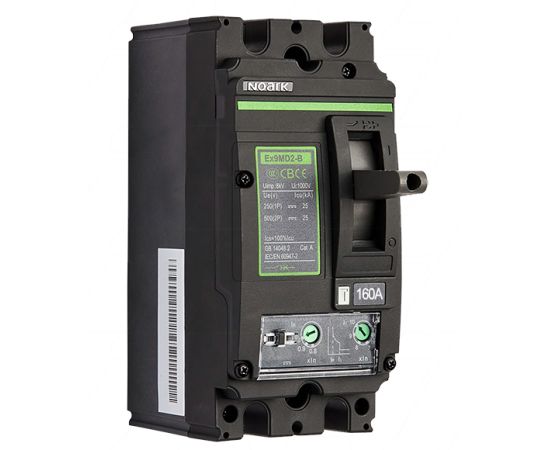

Starlink Noark Moulded Case 160A DC Circuit Breaker
Description
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
| Model No | N28901-2P-MCCB 160A/500VDC | ||
| Inventory Code | 65002-043 | ||
| Description | N28901 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker | ||
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications | ||
| Voltage | 500V | ||
| Size | 160A | ||
| Width | 157mm | ||
| Height | 126mm | ||
| Length/Breadth/Depth | 105mm | ||
| Noark Series | EX9MD2B TM DC160 2P |
| Poles | 2 (250VDC per pole) |
| Current Rating (A) | 160A |
| Voltage (Max.) | 500VDC |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Rated Breaking Capacity | 25kA |
| Release Technology | Thermo Magnetic |
| Frame Size | 2 |
| Frame Rating | 250A |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2 |
