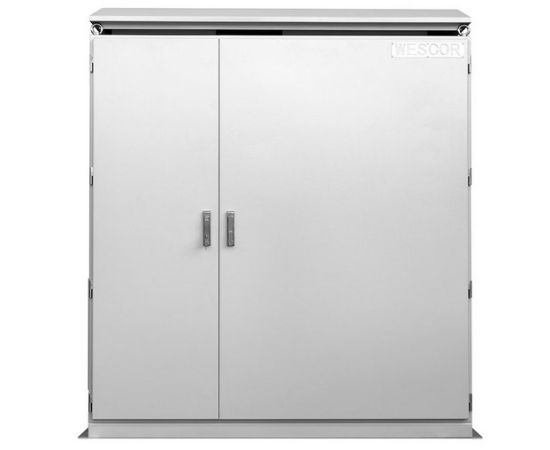

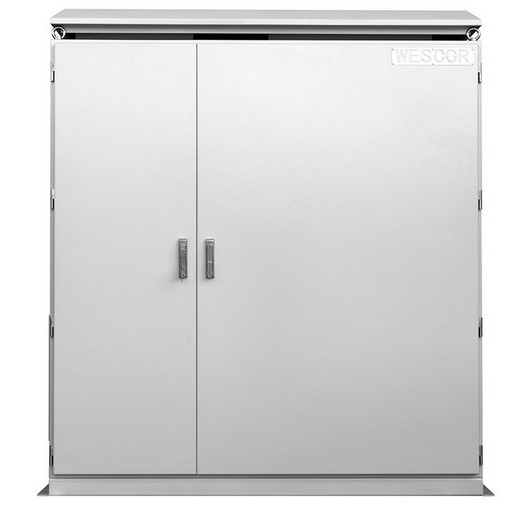

Solar Battery & Equipment Cabinet (2038X1800X585)

AL12+
$5,914.00
In stock
+ −
Compare

Description

Up to 10KW’s of Battery Inverter capacity

Up to 12KW’s of DC Solar Charger capacity

Up to 10KWs of AC coupled panels (e.g., Existing grid connect systems)

14KWh – 42KWh Lithium battery capacity (per cabinet)

Compliant to AS/NZS 5139 including complete segregation between batteries and equipment.

IP55 Rated

fan/filter kit for high temperature and high dust environments

  • 19” Rack mounts with slide-in shelves for battery module mounting, ranging from 8-12 modules

  • Universal racking system for multiple battery brands such as BYD Flex 5.0, Pylontech US3000C and US5000B

  • Indoor or outdoor installation thanks to IP protection rating and new additional rain hood

  • Fully welded construction, 3mm Aluminium

  • Stainless steel bolts and fittings installed throughout

  • Powder coated light grey finish (RAL7035)

  • Mounting pan powder coated white

  • Double front doors with segregation between battery section and equipment section

  • Robust 3-point locking system

  • Gland plates fitted internally

  • Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.

  • Mounting plate can be used for inverters, chargers and all other equipment

  • Stainless steel lifting eyes on all four corners on top

  • Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon

  • Document pocket on inside of door

  • Dust filters installed on inlet outlet vent

  • Ventilation fans installed as standard

  • Punched aluminium screens over all openings to prevent unwanted entry by insects
