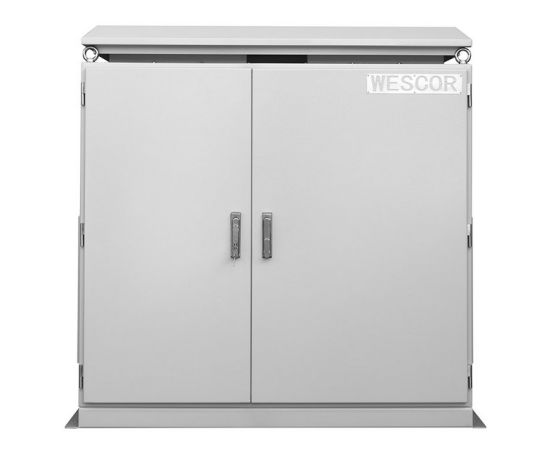

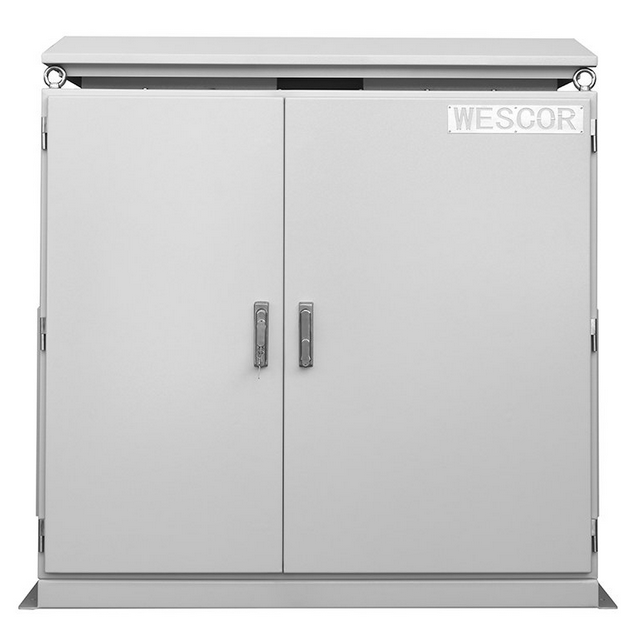

Solar Battery & Equipment Cabinet (1438x1400x585)

CODE: AL8

$4,730.00

In stock

Quantity:

+ −

19” Rack mounts with slide-in shelves for battery module mounting, ranging from 8-12 modules
Universal racking system for multiple battery brands such as BYD Flex 5.0, Pylontech US3000C and US5000B
Indoor or outdoor installation thanks to IP protection rating and new additional rain hood
Fully welded construction, 3mm Aluminium
Stainless steel bolts and fittings installed throughout
Powder coated light grey finish (RAL7035)
Mounting pan powder coated white

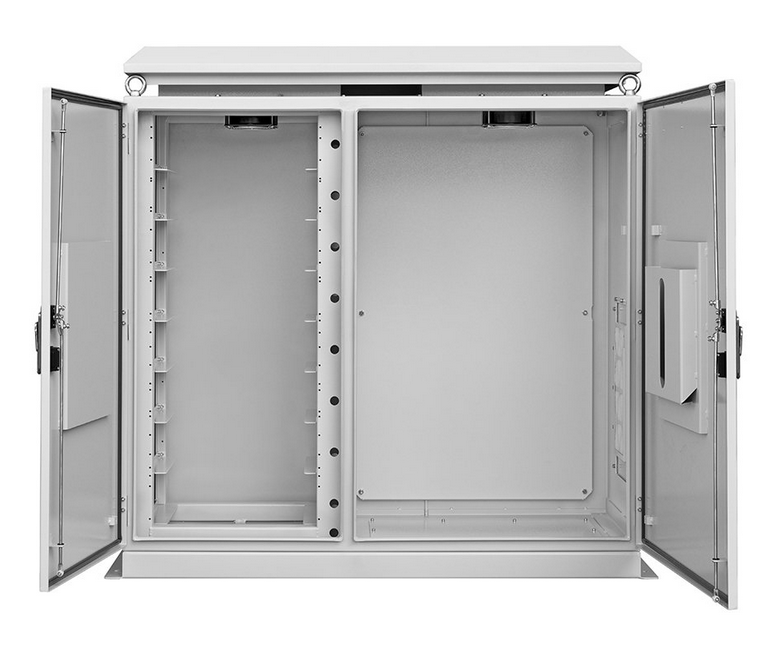

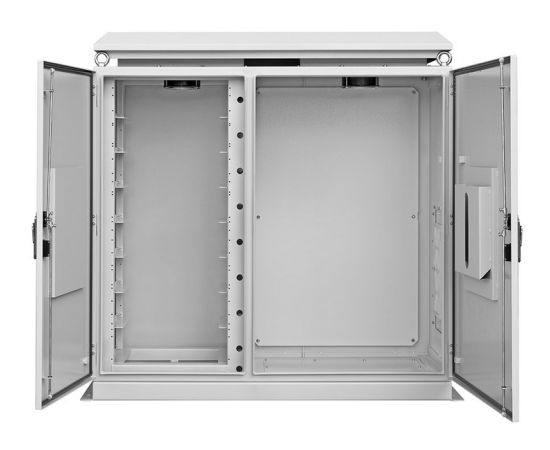

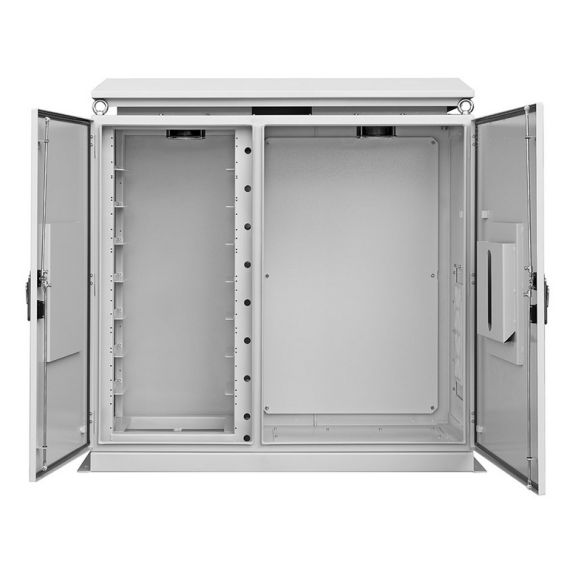

Double front doors with segregation between battery section and equipment section
Robust 3-point locking system
Gland plates fitted internally
Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
Mounting plate can be used for inverters, chargers and all other equipment
Stainless steel lifting eyes on all four corners on top
Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
Document pocket on inside of door
Dust filters installed on inlet outlet vent
Ventilation fans installed as standard
Punched aluminium screens over all openings to prevent unwanted entry by insects

AL8 Data Sheet (AL5.pdf, 2,132 Kb) [Download]

Our knowledgeable staff are happy to take any enquiries about your purchase
