HDMI Over CAT Extender To Suit Victron Cerbo/Touch - Forbes Batteries and Electronics Toowoomba

HDMI OVER CAT EXTENDER TO SUIT VICTRON CERBO/TOUCH

CODE: 4KEX70-L

$349.00

Out of stock

Description

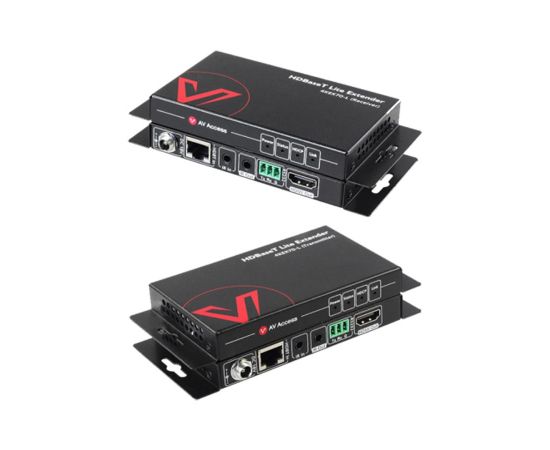

The 4KEX70-L HDMI extender is a slim transmitter receiver pair, which is designed to extend 1080P@60Hz HDMI signal up to 70m/230ft and 4K@60Hz signal up to 40m/131ft via a single Cat 6a/7 cable. The transmitter and receiver are easy to install and space-saving, ideal for home, office, digital entertainment center, control center, conference room, school and corporate training environment, etc.

4K@60Hz 4:2:0 8bit HDR:
Transmits uncompressed 4K@60Hz video up to 40m/130ft, and 1080P@60hz up to 70m/230ft over Cat5e/6a/7 cable. Also supports Dolby Atmos, DTS:X, Dolby True-HD, DTS-HD Master, LPCM 2.1/ 5.1/7.1 CH.

Multi-Functional HDBaseT Extender:
Supports bi-directional PoE, IR and RS232, as well as automatic EDID management. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60 4:2:0 chroma subsampling only).

Slim Design & Excellent Compatibility:
Compact and portable, as small as a smartphone. Works perfectly with PCs, game consoles and most HDMI devices, ideal for digital signage, home theater, boardroom, classroom, meeting room, gaming, etc.

High Reliability：
Certificated by CE, FCC. Built-in surge/lightning protection and superior ESD protection. Comes with mounting ears for easy installation.

Video Signal Type	HDMI 1.4, HDCP2.2
Audio Format	Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through
Input/Output Resolution Support	SMPTE: 1280x720P^{1,2,3,4,5,6,7,8}, 1920x1080I^6,8, 1920x1080P^{1,2,3,4,5,6,7,8}, 3840×2160^2,3,5,6,8, 4096×2160^2,3,5,6,8 VESA: 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×960⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1400×1050⁸, 1440×900⁸, 1600×900⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸ 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz; NOTE: 4096×2160/3840×2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only
Maximum Data Rate	10.2Gbps
General
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Surge Protection	Voltage: ±1 kV
Power Consumption (Maximum)	≤8.88 W (Pair)
Device Dimensions (W x H x D)	108.8 mm ×15 mm ×64.2 mm 4.29” x 0.59” x 2.52”
Product Weight	Transmitter: 0.18kg/0.40lb Receiver: 0.18kg/0.40lb
