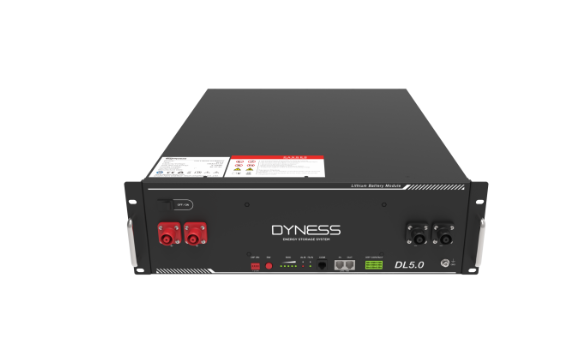

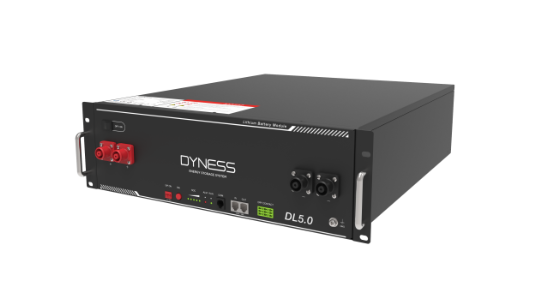

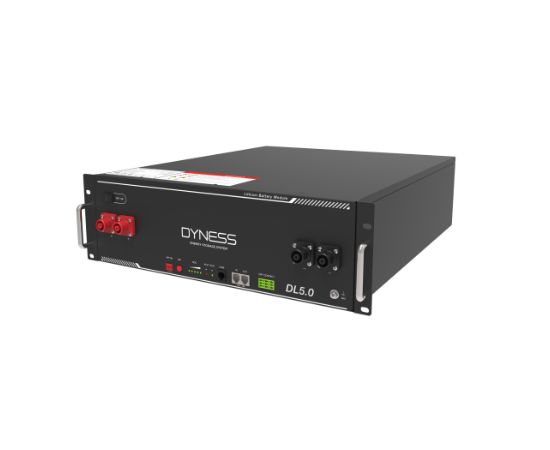

Dyness LiFePO4, 5.12 kWh, 51.2V Battery Module

DL5.0 has a larger capacity design for residential and commercial storage applications. Up to 50 batteries can be connected in parallel to meet the needs of more users. The optional OTA function enables remote update & easy monitoring. Powerful, high capacity and modular.

Smart

• Each module is equipped with an independent BMS system

Safe

• Safe lithium iron phosphate battery cell

Modular Design

• Compact size and light weight

Compact Design

• Weight/Kg: 44
• Size/mm: 481 * 535 * 140
• Practical pull ear design improves operation convenience

Intelligent management

• Dyness battery module is equipped with intelligent BMS for each battery pack to manage modules effectively.
• Compared with the traditional module, DL5.0 offers best energy storage reliability with longer life span.

Module Application

• The Dyness battery module DL5.0 is widely used in energy storage and back-up power systems.
• For new energy storage, from distributed household energy storage systems to centralized power station energy storage system, DL5.0 plays an excellent role for its modular design.
• For back-up power systems, module-based systems can be irreplaceable both in grid or off-grid.
• The DL5.0 module is also ideal for marine and recreational vehicles (RV) applications such as camper trailers, campervans and motorhomes.

Wide Compatibility

• Dyness is proud to announce that our B3A modules can work with Victron/Goodwe/Imeon/Solis/Lux Power/Sofar/GMDE/Voltronic/SMA/Deye plus many others.

Natural Cooling

• Doesn’t require expensive cooling and ventilation systems

Longer Lifetime

• 6000 cycles, 10 year warranty (70% capacity remaining) when installed by a qualified installer/electrician, and must be registered on the Dyness website.
• 3000 cycles, 5 year warranty when used in mobile vehicle applications such as RVs and marine.

Easy Installation

• Standard 19” design with helpful pulling ear
• Quick stacking

Certifications & Specification

• TUV CE IEC62619 IEC62040 UN38.3 pending
• Australian CEC Accreditation pending
