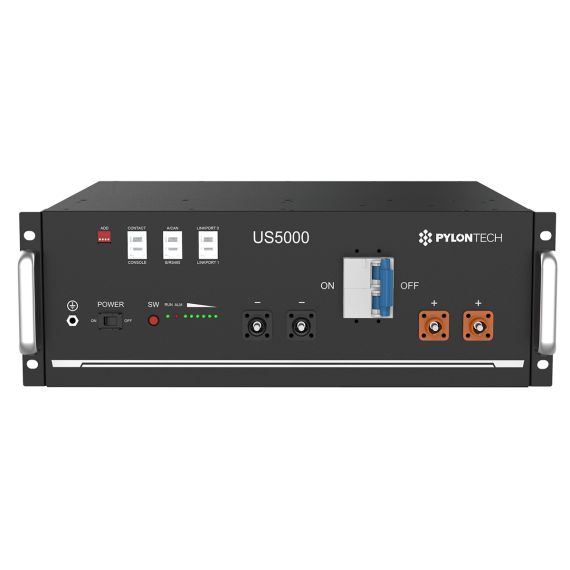

Pylontech US5000-B 48V 5kWh Lithium Battery Module
Save 11%
US5000-B
Features:
- 4RU size (161mm tall)
- Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Usable capacity of 4.56kWh @ 48 vDC
- Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
- Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
- Compatible with many available Hybrid inverters
- Backwards Compatible with existing US series products
- Pre-charge function to protect ESS from surge currents
- Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
- Communication Protocols: CAN, RS485
- 15+ Year Design Life
- 10 year Warranty
Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.
| Nominal Voltage (Vdc) | 48 | |
| Nominal Capacity(Wh) | 4800 | |
| Usable Capacity(Wh) | 4560 | |
| Dimension(mm) | 442*420*161 | |
| Weight(kg) | 39.7 | |
| Charge/Discharge Current (A) | (Recommend) | 80* |
| (Max. Continuous) | 100* | |
| (Peak 1) | 101~120@15min | |
| (Peak 2 ) | 121~200@15sec | |
| Communication Port | RS485,CAN | |
| Single string quantity(pcs) | 16 | |
| Working Temperature/ °C | Charge | 0~50 |
| Discharge | -10~50 | |
| Shelf Temperature/ °C | -20~60 | |
| Short current/duration time | <2000A/1ms | |
| IP rating of enclosure | IP20 | |
| Cooling type | Natural | |
| Humidity | 5% ~ 95%(RH) No Condensation | |
| Altitude(M) | <4000 | |
| Design life | 15+ Years (25°C/77°F) | |
| Cycle Life | >6,000 25°C | |
| Authentication Level | UL1973/UL9540A/IEC62619/IEC63056/ICE61000-6-2/3/UN38.3 | |
