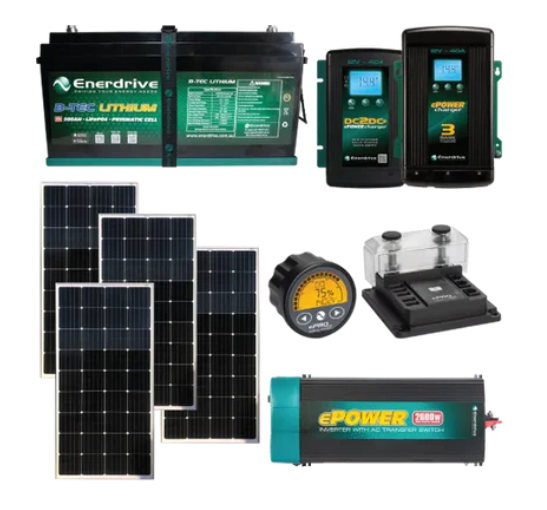

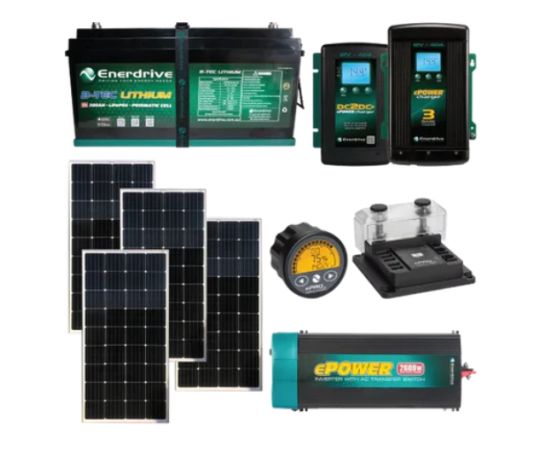

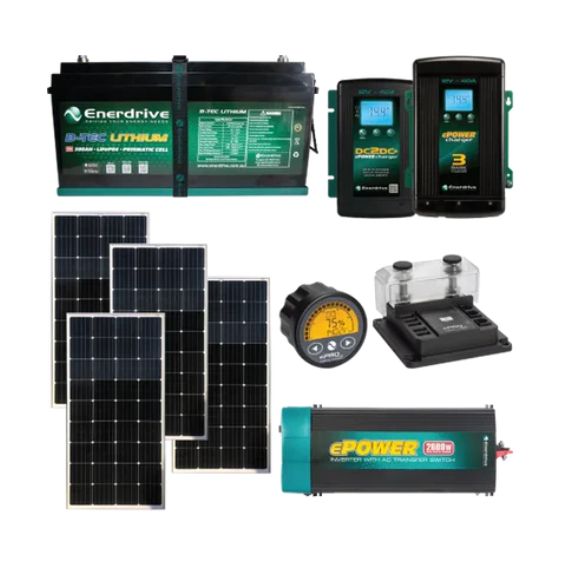

200Ah B-TEC inc 760W Solar, DC40, AC40, ePRO+ & 2600X TIAV

• Part Number: EPL-200BT-12V-G2

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The battery is also equipped with an internal Battery Management System that can monitor and optimise each prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

The G2 now incorporates a 'Built-In Reset Button' making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

• Part Number: EN31240

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, "set and forget" charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

• Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
• Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
• Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
• Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.


• Part Number: EN3DC40+

The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

• Part Number: EN55050

This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO Plus is compatible with lead based and Lithium batteries (LiFePO4).

• Complete battery status information at a glance on a single bank (%, V, A, Ah, W, h:m, C)
• Able to monitor up to 3 battery voltages (eg. House, Start & Generator bank)
• Full battery history information available
• Bluetooth dongle available as optional extra for free smartphone app connectivity

• Part Number:  EN1226S-X

The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

• Part Number:  SP-EN190W (x4)
• High conversion effiency: module efficiency up to 17.86% achieved through advanced cell technology
• Positive tolerance: tolerance of up to 0-5W deliveres higher output reliability
• High PID Resistance: advanced cell technology and qualified materials lead to high PID resistance
• Current Sorting process: system output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
• Extended wind & snow load tests: module certified to withstand extreme wind (2400 Pascal)  snow loads (5400 Pascal)
