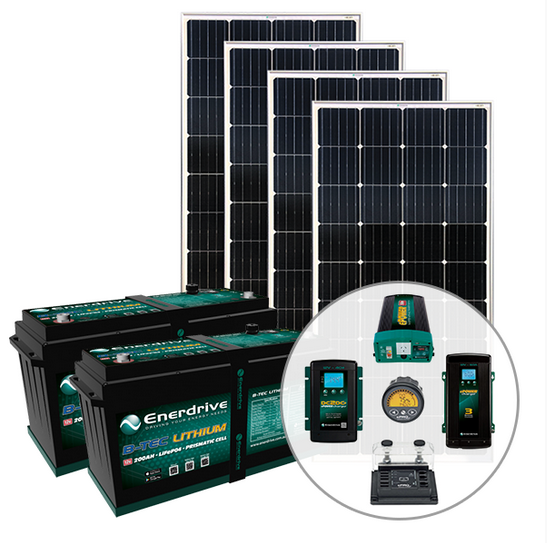

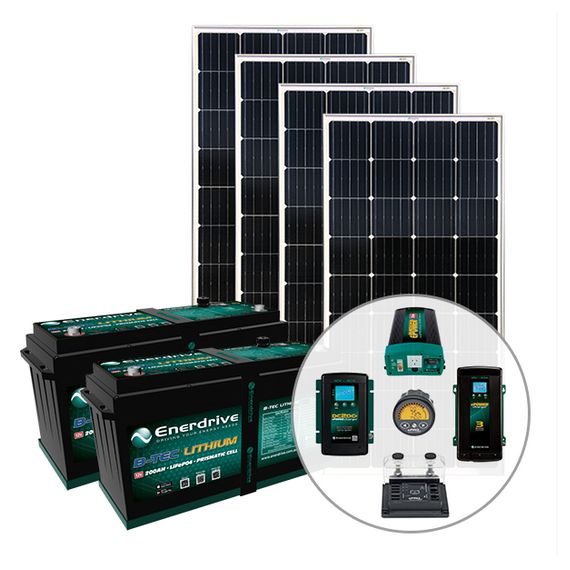

2 x 200Ah B-TEC inc 760W Solar, DC40, AC60, ePRO+ & 2600X TIAV
SKU K-400-18
Brand Enerdrive
GTIN 9342616001332
Product Category Batteries
Warranty Period: 5 Years
Model EPL-200BT-12V-G2 (Battery) | EN3DC40+ (DC Battery Charger) | EN31260 (AC Battery Charger) | EN1226S-X (Inverter) | SP-EN190W (Solar Panel)
Product Type 200Ah Lithium Battery (x2) + 12V 40A DC to DC Battery Charger + 12V 60A Battery Charger + 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Swi
Battery Voltage 12V
Amp Hours (ah) 400
Battery Weight (kg) 25
Cell Type Monocrystalline - 72 Cells each (Solar Panels)
Recommended Charge Current for Maximum Life ≤ 60A (Battery)
Total Charge Current Max 150A @ 25°C for 30mins (Battery)
Nominal Capacity 200Ah (Battery)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Input Voltage 10.5 – 15.5 VDC (Inverter)
Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
Humidity 5-95%, relative humidity non-condensing (AC Battery Charger) | 5-90% noncondensing (Inverter)
Under Voltage Shutdown 10.5 / 11.8 VDC (Inverter)
DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Under Voltage Alarm 11.0 / 12.1 VDC (Inverter)
AC Output 2600W, 11.3A (Inverter)
Net Weight (kg) 109.7
Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)
Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
Discharge Cut-off Voltage ≤ 11.20V (Battery)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
Maximum Charge Current 150A @ 25°C for 30mins (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Nominal Voltage 12.8v (Battery)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Over Voltage Shutdown 15.5 VDC (Inverter)
Dimensions Battery: 505 x 172.5 x 265 mm | DC to DC Charger: 242 x 172 x 74 mm | AC Charger: 356 x 206 x 99 mm | Inverter: 230 x 560 x 115 mm | Solar Panels (1
USB Socket Output 5V, 750 mA (Inverter)
No Load Battery Draw < 1.5 ADC (Inverter)
Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)
Power consumption (DC 12V) 1050W (Full Load) (AC Battery Charger)
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)
DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
Standby Current < 2 mA (AC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
Power Factor Correction Yes (AC Battery Charger)
Pulse Discharge Current 450A for 1.0s (Battery)
Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Inverter)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Operating Range (temp) -20° to 60° C (AC Battery Charger)
Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Inverter)
NOTE For any installation that requires additional wiring, we recommend you engage a licensed auto electrician.
Operating Altitude Up to 3000 meters above sea level (Inverter)
Storage Range (temp) -40° to 70° C (AC Battery Charger)
Temperature range 0°C to 40°C (Inverter)
Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)
AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
Float 13.50 - 13.80V (Battery) | 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
Over Charge Yes, unit shutdown (AC Battery Charger)
AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
