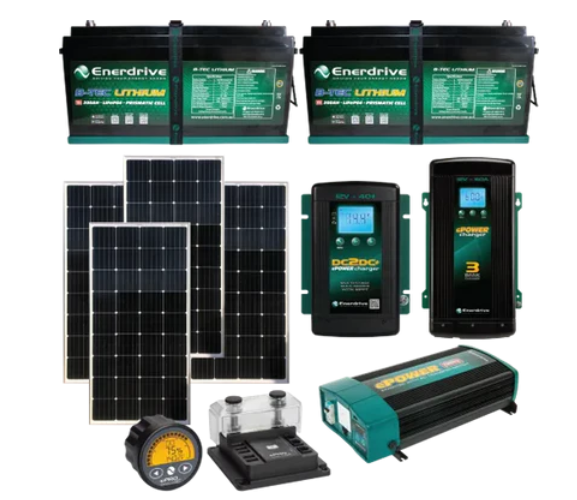

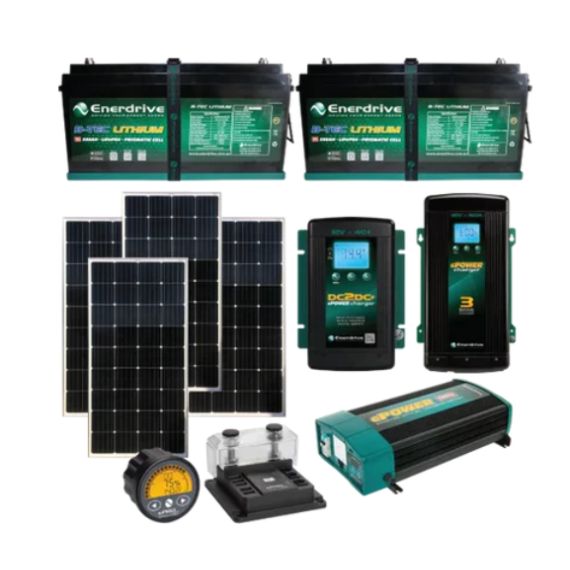

2 x 200Ah B-TEC inc 760W Solar, DC40, AC60, ePRO+ & 2000X TIAV
K-400-17
SPECIFICATIONS
| Amp Hours | 200.0 Ah |
| Battery Voltage | 12V |
|
Charger Mode Output Voltage
|
13.8V - 15.5V (DC Battery Charger) |
| 14.2 – 15.5 V (AC Battery Charger) | |
|
Float
|
13.50 - 13.80V (Battery) |
| 13.0V - 13.8V (DC Battery Charger) | |
| 13.4 – 13.8 V (AC Battery Charger) | |
|
Equalize
|
15.5V (DC Battery Charger) |
| 16.0 V (AC Battery Charger) | |
|
Charging Control
|
Four stages (Bulk/Absorption/Float/Maintenance) |
| Two stages (Bulk/Absorption) | |
| Constant Power Supply (Program setting) | |
| Priority Battery Bank Charging (AC Battery Charger) | |
|
DC Output
|
Single (DC Battery Charger) |
|
Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
|
|
| Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
|
| Standby Current | < 2 mA (AC Battery Charger) |
| Cell Type | Monocrystalline - 72 Cells each (Solar Panels) |
| AC Input Voltage | 90 to 265 VAC (AC Battery Charger) |
| AC Input Operating Range |
207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
|
| AC Input Frequency Range | 47 – 63 Hz (AC Battery Charger) |
| Power Consumption | 1050W (Full Load) (AC Battery Charger) |
| Power Factor Correction | Yes (AC Battery Charger) |
| Charger Efficiency | 95% (DC Battery Charger) | > 82% (AC Battery Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
| Over Charge | Yes, unit shutdown (AC Battery Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Battery Charger) |
| Cooling |
Forced air ventilation (thermo controlled fan) (AC Battery Charger)
|
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
|
Temperature Setting
|
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
|
|
Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
|
|
| Battery Temperature Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
|
| LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
|
| AC Input Connection |
IEC with Supplied 1.2M Power Lead (AC Battery Charger)
|
| DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
|
| DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Battery Charger)
|
| Storage Temperature Range | -40° to 70° C (AC Battery Charger) |
| Operating Temperature Range | -20° to 60° C (AC Battery Charger) |
| Humidity |
5-95%, relative humidity non-condensing (AC Battery Charger)
|
| Ingress Protection |
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
|
| Nominal Voltage | 12.8V (Battery) |
| Nominal Capacity | 200Ah (Battery) |
| Total Charge Current | Max 150A @ 25°C for 30mins (Battery) |
| Regulatory Compliance |
Complies with AS/NZS 60335.2.29 Including Australian deviations
|
| Cycle Life |
(DOD - 80% under controlled conditions) ≥ 2000 Cycles (Battery)
|
| Battery Charge Temperature | 0 ̴ 45°C (Battery) |
| Normal Charge Voltage | CV/CC* 14.40 ̴ 14.60V (Battery) |
| Standby (Float) Voltage | 13.50 ̴ 13.80V (Battery) |
| Maximum Charge Current | 150A @ 25°C for 30mins (Battery) |
| Recommended Charge Current for Maximum Life | ≤ 60A (Battery) |
| Battery Discharge Temperature | -20 ̴ 60°C (Battery) |
| Battery Output Voltage Range | 11.00 ̴ 14.60V (Battery) |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins (Battery) |
| Pulse Discharge Current | 450A for 1.0s (Battery) |
| Discharge Cut-off Voltage | ≤ 11.20V (Battery) |
| Input Voltage | 10.5 - 15.5 VDC (Inverter) |
| AC Output | 2600W, 11.3A (Inverter) |
| No Load Battery Draw | < 1.5 ADC (Inverter) |
| Under Voltage Alarm | 11.0/12.1 VDC (Inverter) |
| Under Voltage Alarm Recovery | 11.3/12.3 VDC |
| Under Voltage Shutdown | 10.5/11.8 VDC (Inverter) |
| Under Voltage Shutdown Recovery | 12.0/12.6 VDC (Inverter) |
| Over Voltage Shutdown | 15.5VDC (Inverter) |
| USB Socket Output | 5V, 730 mA (Inverter) |
| Operating Altitude | Up to 3000 meters above sea level (Inverter) |
| Wattage | 180W each (720W total) (Solar Panels) |
|
Dimensions (L x W x H)
|
Battery: 505 x 172.5 x 265 mm |
| DC to DC Charger: 242 x 172 x 74 mm | |
| AC Charger: 295 x 206 x 90 mm | |
| Solar Panels (1 Panel): 1482 x 680 x 35 mm | |
| Inverter: 560 x 230 x 115 mm | |
| Weight | 109.7 Kg |
