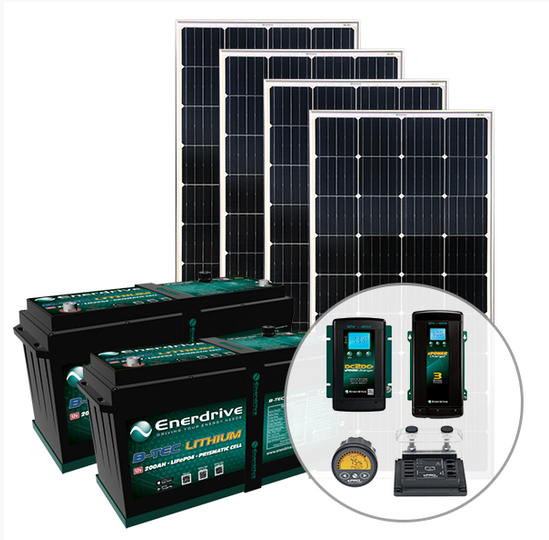

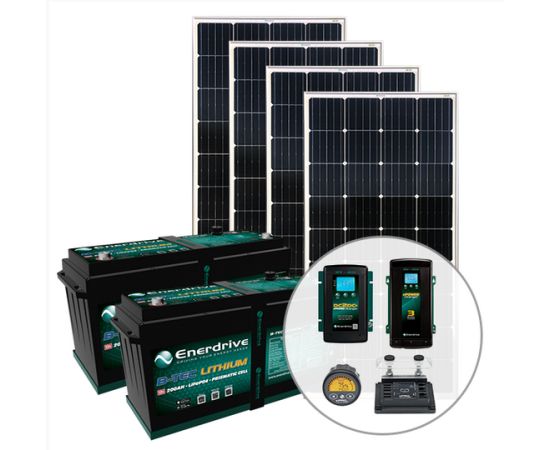

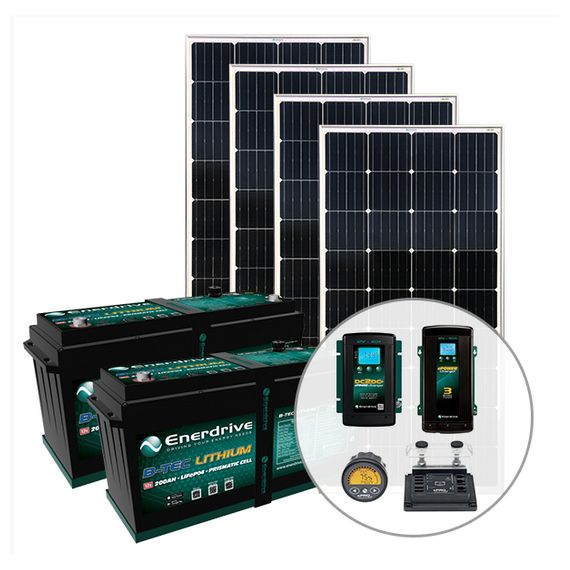

2 x 200Ah B-TEC inc 760W Solar, DC40, AC60 & ePRO+ TIAV

K-400-16
$8,029.00
Out of stock
Compare

Description

Enerdrive 400Ah Off-Grid 40A DC & 60A AC Charging Bundle, with 760W Solar Panels, 5 Year Warranty. The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty.

Pack Includes:

NOTE: This model have changed Part Number, it used to be called K-400-TIAV, and is now called K-400-16



2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery:

Enerdrive have released the new ePOWER B-TEC 200Ah Lithium Battery with new features including:

  • BMS restart button for easy recovery
  • RS485 communications port for advanced system integration
  • Raised terminals for 360 degree cable connections
  • Re-designed battery case for easy serviceability
  • Battery box and straps INCLUDED - nothing more to buy!

The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android or Apple app to your smartphone or tablet device, you can monitor the following information;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information

Battery Management System

The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings
Lithium v AGM Capacities;

  • 200Ah Lithium = 360Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 5 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 1200 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

Enerdrive ePOWER 12V 40A DC to DC Battery Charger:

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
  • 40A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging
PRO TIP: Common accessories to go with this DC to DC charger are the  60Amp 70Amp & 80Amp breakers, also the 3 pre-wired & fused charging cables. These are available in the Accessory List above to add as optional extras, please see the product manual & drawings for the connection.


Enerdrive ePOWER 12V 60A Battery Charger:

The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

60A Battery Charger Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
  • Temperature Sensor: Battery temperature sensor included with 3 meter cable.
  • 2 Year Warranty from an Australian company renowned for customer support.

Enerdrive ePRO PLUS Battery Monitor:

  • Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C)
  • Supports up to three battery banks (12V, 24V and 48V)
  • Very simple ‘Plug and Play’ installation
  • Perfect integration with Enerdrive DC Modular products

The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products.

This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO PLUS is compatible with lead based and Lithium batteries (LiFePO4).

The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO PLUS battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored.

The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.

 *Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.

4 x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

  • Suited to 12v installations (or 24v by series connections of panels)
  • A fly lead cable is provided for easy connection of the 10 & 20w panels
  • The larger panels have MC4 compatible solar cable connectors included

SKU K-400-16

Brand Enerdrive

GTIN 9342616001318

Product Category Batteries

Warranty Period: 5 Years

Model EPL-200BT-12V (Battery) | EN3DC40+ (DC Battery Charger) | EN31260 (AC Battery Charger) | SP-EN190W (Solar Panel)

Product Type 200Ah Lithium Battery + 12V 40A DC to DC Battery Charger + 12V 60A Battery Charger + 190W Mono Crystalline Fixed Solar Panel (x4)

Battery Voltage 12V

Amp Hours (ah) 400

Battery Weight (kg) 25

Cell Type Monocrystalline - 72 Cells each (Solar Panels)

Pulse Discharge Current 450A for 1.0s (Battery)

DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)

Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)

Operating Range (temp) -20° to 60° C (AC Battery Charger)

Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)

Humidity 5-95%, relative humidity non-condensing (AC Battery Charger)

Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)

DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

Battery Charge Temperature 0 ̴ 45°C (Battery)

Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)

Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)

AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max) (AC Battery Charger)

Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)

Float 13.50 - 13.80V (Battery) | 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)

Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)

Recommended Charge Current for Maximum Life ≤ 60A (Battery)

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)

Nominal Capacity 200Ah (Battery)

Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)

Power Factor Correction Yes (AC Battery Charger)

Dimensions Battery (1 Battery): 505 x 172.5 x 265 mm | DC to DC Charger: 242 x 172 x 74 mm | AC Charger: 356 x 206 x 99 mm | Solar Panels (1 Panel): 1482 x 680

Dimensions Battery (1 Battery): 505 x 172.5 x 265 mm | DC to DC Charger: 242 x 172 x 74 mm | AC Charger: 356 x 206 x 99 mm | 1500 x 680 x 680 x 35mm (Solar Panel

Total Charge Current Max 150A @ 25°C for 30mins (Battery)

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)

Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)

Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)

Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)

Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)

Discharge Cut-off Voltage ≤ 11.20V (Battery)

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.

Maximum Charge Current 150A @ 25°C for 30mins (Battery)

AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)

Nominal Voltage 12.8v (Battery)

Over Charge Yes, unit shutdown (AC Battery Charger)

AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)

NOTE For any installation that requires additional wiring, we recommend you engage a licensed auto electrician.

Battery Discharge Temperature -20 ̴ 60°C (Battery)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)

Storage Range (temp) -40° to 70° C (AC Battery Charger)

Power consumption (DC 12V) 1050W (Full Load) (AC Battery Charger)

Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)

Standby Current < 2 mA (AC Battery Charger)

Net Weight (kg) 102.7

AC Input Voltage 90 to 265 VAC (AC Battery Charger)

Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
