Starlink SmartSolar MPPT 150/35
Description
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

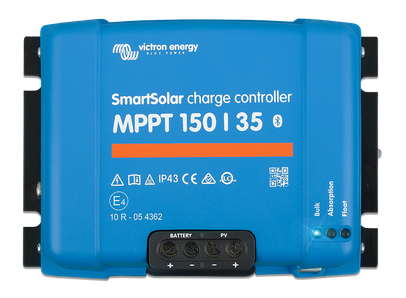

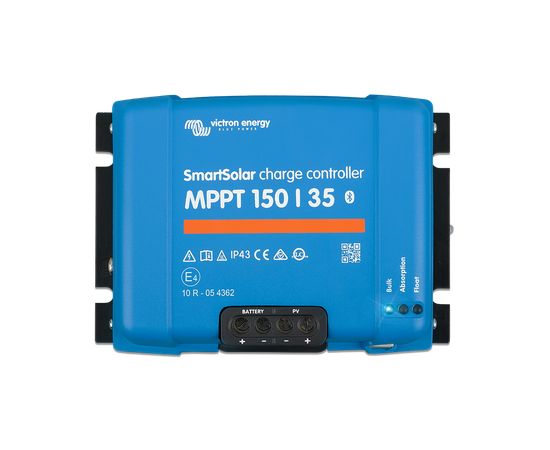

The Victron SmartSolar MPPT 150/35 Charge Controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Battery voltage :12 / 24 / 48V Auto Select (software tool needed to select 36V)
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your Smart Solar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via Victron Connect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both Victron Connect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the Global Link 520.
Parameters |
Values |
| Model | MPPT 150/35 |
| Battery voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V) |
| Rated charge current | 35A |
| Nominal PV power (1a, b) | 35A 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W |
| Max. PV short circuit current | 40A |
| Maximum PV open circuit voltage | 150V absolute maximum coldest conditions 145V start-up and operating maximum |
| Maximum efficiency | 98% |
| Self-consumption | 12V: 20mA 24V: 15mA 48V: 10mA |
| Charge voltage 'absorption' | Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / output short circuit / over-temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,25 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
