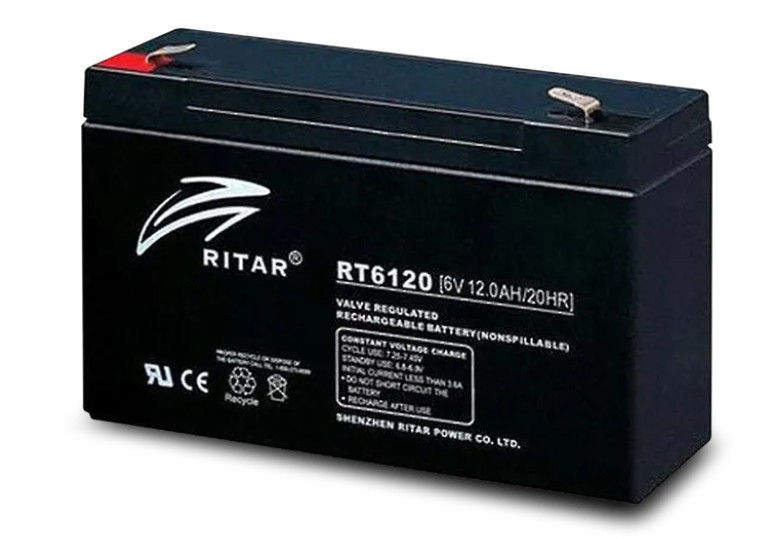

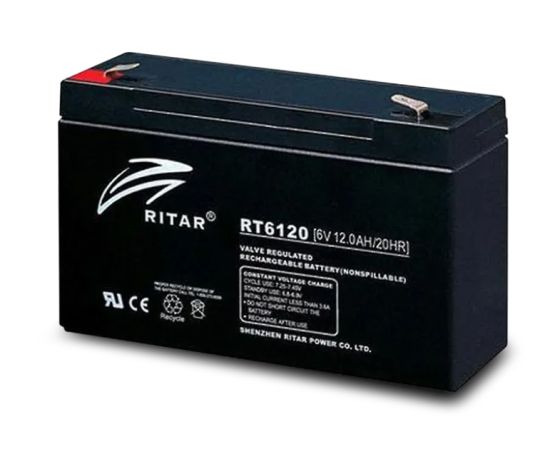

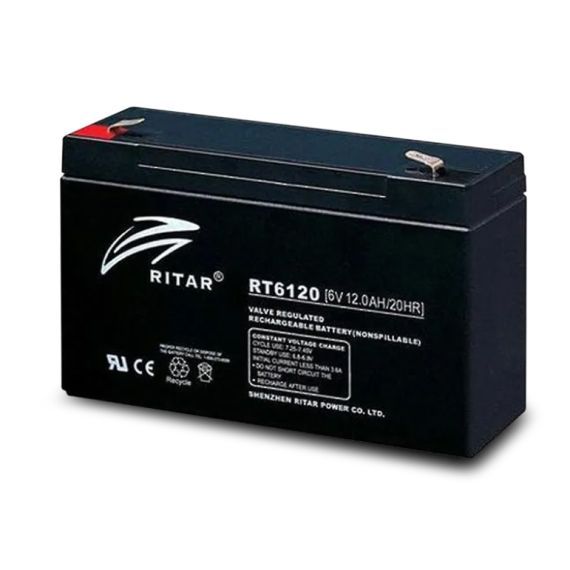

RITAR 6V 12AH VRSLA
Specifications:
- Cells Per Unit: 3
- Voltage Per Unit: 6
- Nominal Capacity: 12.0Ah@20hour-rate to 1.75V per cell @25℃
- Weight: Approx. 1.65 Kg (Tolerance±5.0%)
- Internal Resistance: Approx. 12 mΩ
- Terminal: F1/F2
- Max. Discharge Current: 120A (5 sec)
- Short Circuit Current: 580A
- Design Life: 6~8 years (Float charging)
- Max. Charging Current: 3.60 A
- Reference Capacity:
- C3 9.29AH
- C5 10.5AH
- C10 11.2AH
- C20 12.0AH
- Standby Use Voltage:
- 6.85 V~6.94 V @ 25℃
- Temperature Compensation: -3mV/℃/Cell
- Equalization Voltage:
- 7.30 V~7.40 V @ 25℃
- Temperature Compensation: -4mV/℃/Cell
- Operating Temperature Range:
- Discharge: -20℃~60℃
- Charge: 0℃~50℃
- Storage: -20℃~60℃
- Normal Operating Temperature Range: 25℃±5℃
- Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
- Container Material A.B.S. UL94-HB, UL94-V0 Optional
