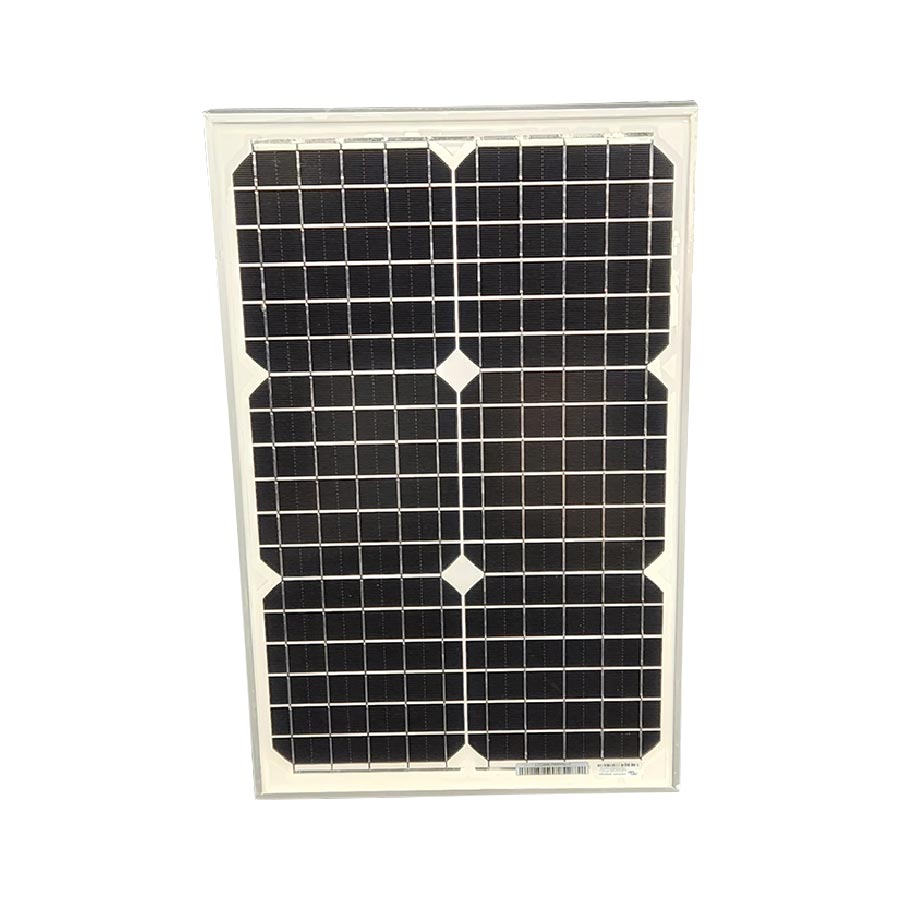

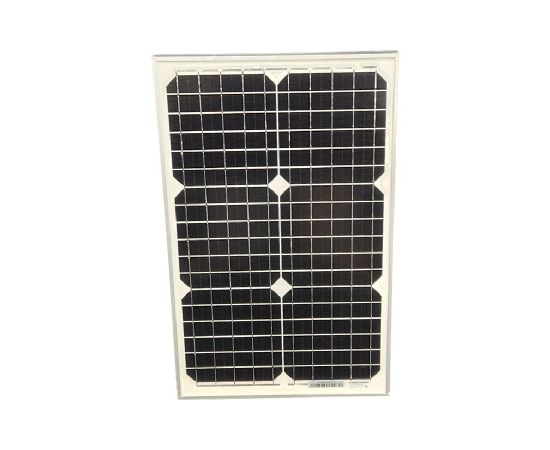

Victron 30W Solar Panel
SPM040301200
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25 Year limited warranty on power output and performance.
- 5 Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multi-functional junction box gives high level of safety.
- High performance bypass diodes minimise the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodised aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with MC4 (PV-ST01) connectors.
Parameter |
Values |
| Product code | SPM040301200 |
| Nominal Power (W) | 30 |
| Max Power Voltage (V) | 18.7 |
| Max Power Current (A) | 1.61 |
| Open Circuit Voltage (V) | 22.87 |
| Short Circuit Current (A) | 1.76 |
| Cell Type | Monocrystalline |
| No of Cells in Series | 36 |
| Length (mm) | 560 |
| Width (mm) | 350 |
| Height (mm) | 25 |
| Temp Coeff of MPP (%) | -0.45/°C |
| Temp Coeff of Voc (%) | -0.35/°C |
| Temp Coeff of Isc (%) | +0.04/°C |
| Temperature Range | -40°C to +85°C |
| Output Tolerance | +/-3% |
| Frame | Aluminium |
| Warranty | 5 Years |
