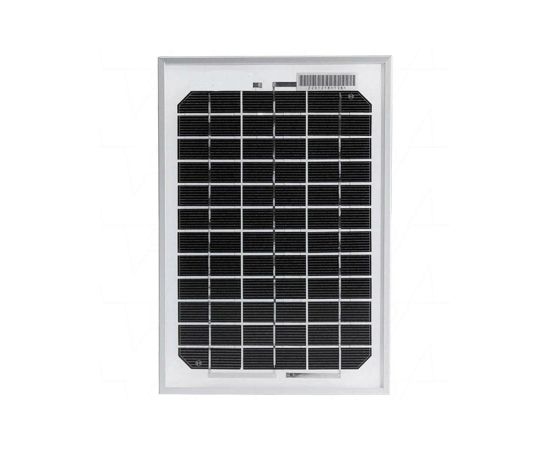

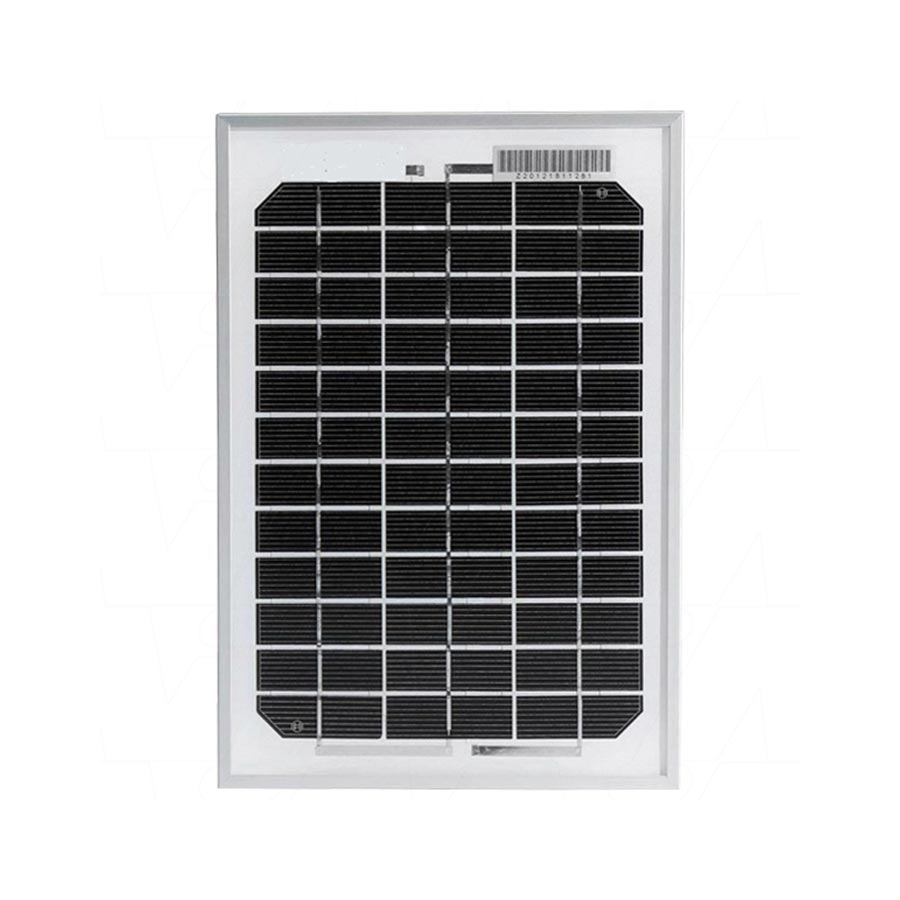

Starlink Symmetry 5W Solar Panel
Description
The New 5 Busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. With a Power output of 5W , the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
- 5 Busbar Cell
5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
- High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
- Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
- Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
- Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
- 0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
- High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
- Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
- Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
- Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
- 0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
| Packaging | Cardboard Carton |
| Length [mm] | 250 |
| Width [mm] | 185 |
| Number of Cells | 36 |
| Maximum System Voltage [V] | 1000 |
| Module Cables | 8m x 0.5mm2 dual core |
| Pmp Tolerance | +/-3% |
| Junction Box | IP64 |
| Isc Temp Coefficient [%/°C] | +0.048 |
| Voc Temp Coefficient [%/°C] | -0.290 |
| Pmp Temp Coefficient [%/°C] | -0.400 |
| Open Circuit Voltage (Voc) [V] | 22.43 |
| Short Circuit Current (Isc) [A] | 0.3 |
| Maximum Power Current (Imp) [A] | 0.28 |
| Maximum Power Voltage (Vmp) [V] | 18.31 |
| Solar Cell Type | Monocrystalline |
| Frame Colour | Silver |
| Maximum Power (Pmp) [W] | 5 |
| Operating Temperature Range [°C] | -40 to +85 |
| IP Rating | IP64 |
| Backsheet Colour | White |
| Brand | Symmetry |
| Quantity Per Pallet | 560 |
| Weight [kg] | 0.7 |
| Depth [mm] | 25 |
