Starlink Symmetry 40W 12V Mono Solar Module - 5M
Description

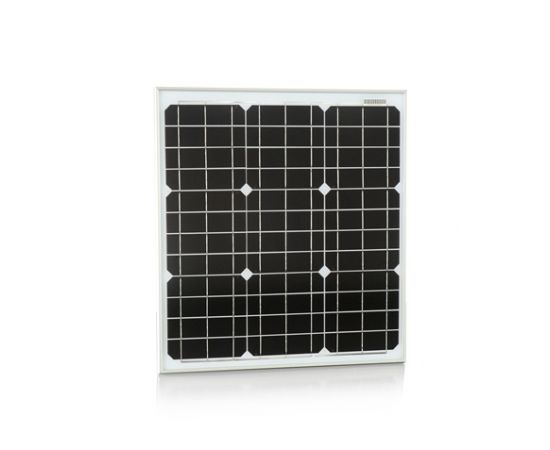

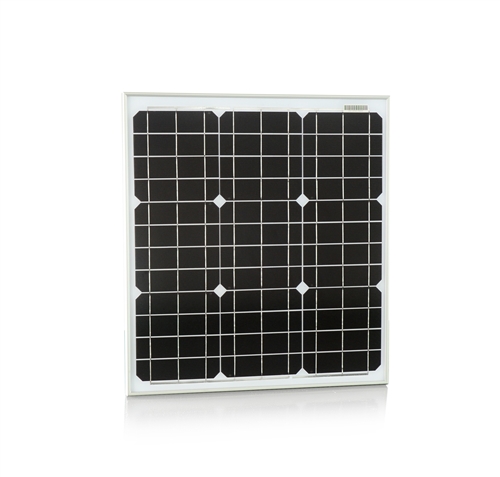

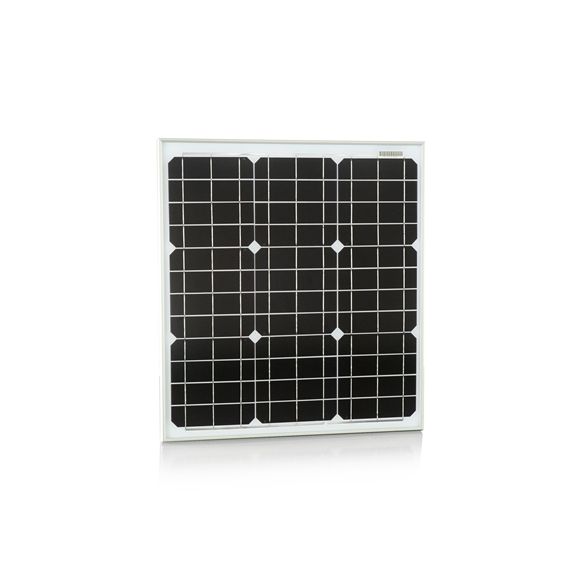

Symmetry 40W 12V Solar Panel
Specifications (per panel)
| Rated Power (watts): | 40 |
|---|---|
| Open Circuit Voltage (volts): |
21.6
|
| Maximum Power Voltage (volts): |
17.8
|
| Short Circuit Current (amps): | 2.43 |
| Maximum Power Current (amps): | 2.25 |
| Temp. Range: | -40 to +85°C |
| Maximum System Voltage: | 1000 V DC |
|
Nominal DC Voltage:
|
12 V
|
| Power Tolerance: | 0/+3 % |
| Cell Technology: | Monocrystalline |
| Number of Cells: |
36
|
| Size (mm): | 550 × 505 × 25 |
| Warranty: | 5 Years Product ; 25 Years Performance |
| Weight: | 3.2kg |
| Junction Box: | sealed junction box with 8m fly leads |
| Connectors & Output Cables(mm): | 8000mm fly leads, no connectors |
