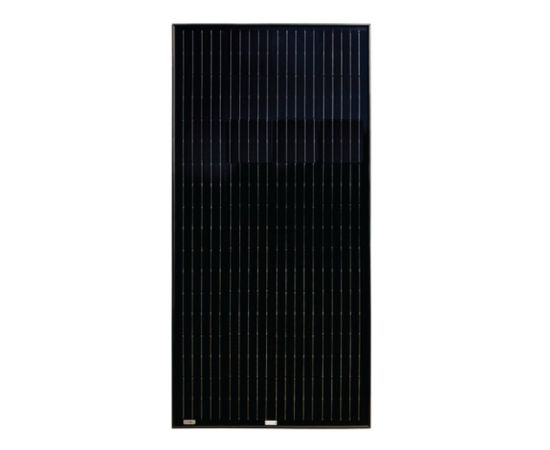

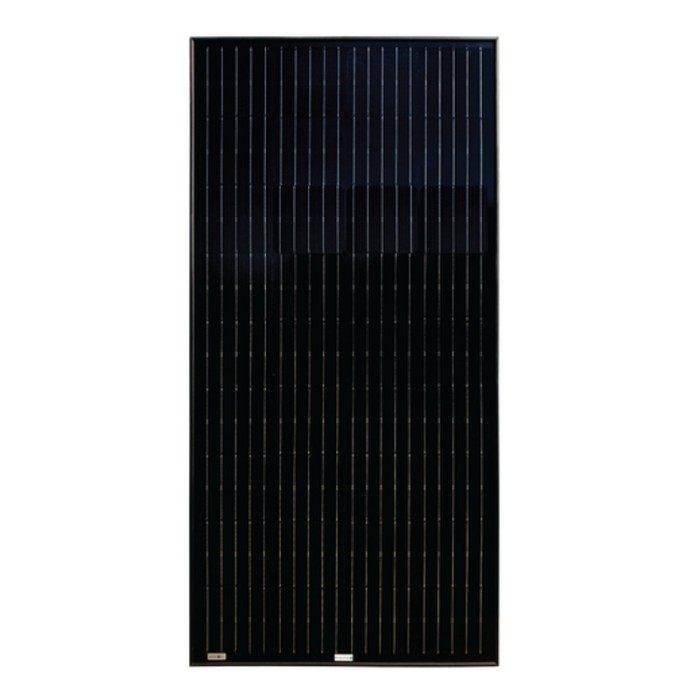

Starlink ENERDRIVE 190W 12v SOLAR PANEL BLACK
Description
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).Features
- High Conversion Efficiency - Module efficiency up to 17.86% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance up to 0~+5W delivers higher output 0~+5W reliability
- High PID Resistant - Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process - System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
- Extended Wind and Snow Load tests - Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment - Reliable quality leads to a better sustainability even in harsh environment environments in the outdoors.
- 5 year warranty.
Specifications
- Model: SP-EN190W-B
- Brand: Enerdrive
- Max Power: 190W
- Power Tolerance: +/- 3%
- Optimum Operating Voltage(Vmp): 20.00V
- Optimum Operating Current(Imp): 9.50A
- Open Circuit Voltage: 24.80V
- Short Circuit Current: 10.07A
- Max System Voltage: 1000V DC
- Frame: Black Anodised Aluminium Alloy
- Cell Type: Monocrystalline silicon 158 x 158mm
- Number of Cells: 36 (4 x 9)
- Dimensions(mm): 1500 x 680 x 35
- Weight: 11.5Kg
- Shipping Dimensions: 160 cm x 75 cm x 10 cm.
