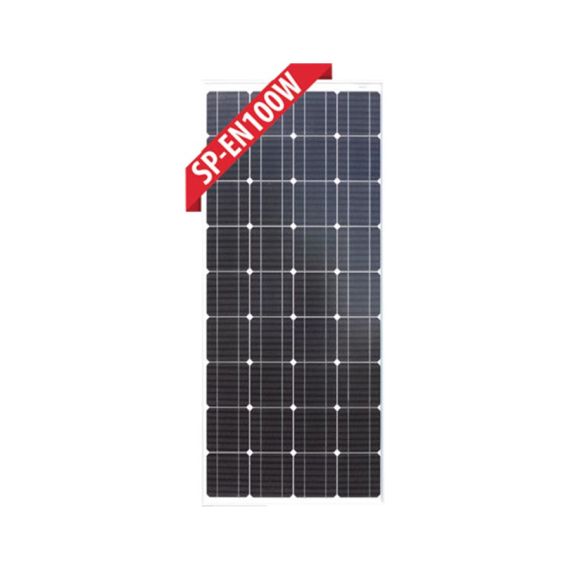

Starlink Enerdrive 100W Solar Panel
Description
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Features
| Enerdrive Part Number | SP-EN100W-24 |
|---|---|
| Max Power Pm(W) | 100 |
| Power Tolerance % | – 1% ∼ + 3% |
| Max Power Voltage Vm(V) | 36 |
| Max Power Current Im(A) | 2.78 |
| Open Circuit Voltage Voc(V) | 43.40 |
| Short Circuit Current Isc(A) | 3.09 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1010 x 676 x 35 |
| Weight (kg) | 8.1 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
| Note: Specifications subject to change without notice. |
