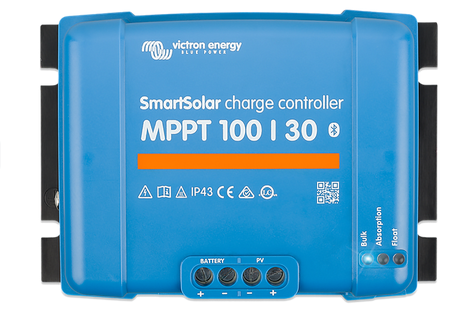

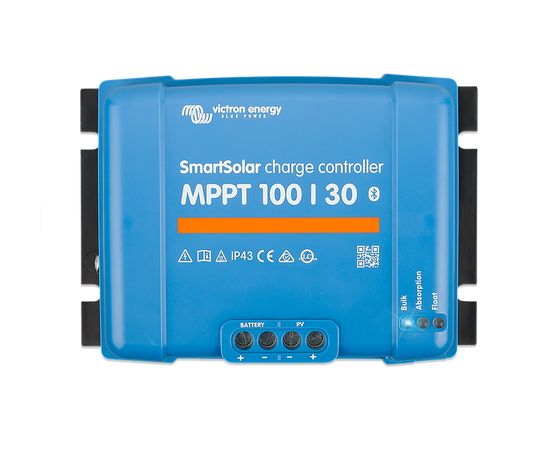

Starlink SmartSolar MPPT 100/30
Description
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The Victron SmartSolar MPPT 100/30 Charge Controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Battery voltage : 12/24V
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your Smart Solar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via Victron Connect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both Victron Connect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the Global Link 520.
Parameters |
Values |
| Model | MPPT 100/30 |
| Battery voltage | 12/24V Auto Select |
| Rated charge current | 30A |
| Nominal PV power, (12V 1a,b) | 440W |
| Nominal PV power, (24V 1a,b) | 880W |
| Maximum PV open circuit voltage | 100V |
| Max. PV short circuit current | 35A |
| Maximum efficiency | 98% |
| Self-consumption | 12V: 30 mA 24V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4V / 28,8V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8V / 27,6V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C |
| Protection | PV reverse polarity,Output short circuit,Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
