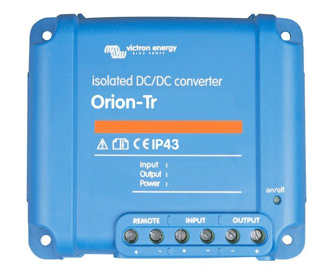

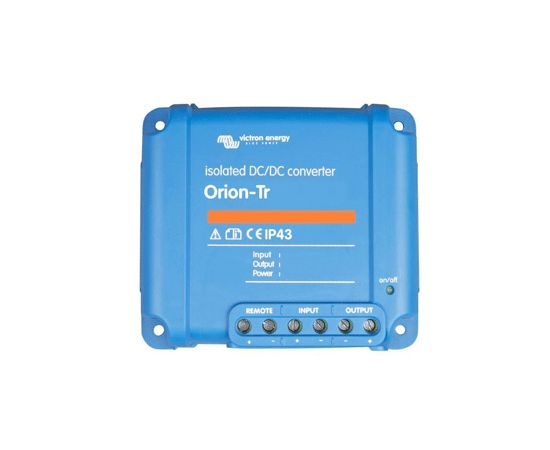

Starlink Orion-Tr 48/12-30A (360W) Isolated DC-DC converter
Description
Victron DC-DC Converters - Orion-Tr DC-DC Converters with galvanic isolation - Orion-Tr 48/12-30A (360W) Isolated DC-DC converter
Remote on-off-The remote on-off eliminates the need for a high current switch in the Input wiring. The remote on-off can be operated with a low power switch or by, for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger- For example to charge a 12 volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current-An unlimited number of units can be connected in parallel.
High temperature protected-The output current will reduce at high ambient temperature.
IP43 protection- When installed with the screw terminals oriented downwards.
Screw terminals-No special tools needed for installation
Input fuse (not replaceable)-On 12V and 24V input models only.
| Input voltage range | 40-70V |
| Under voltage shut down | 28V |
| Under voltage restart | 30V |
| Nominal output voltage | 12,2V |
| Output voltage adjust range | 10-15V |
| Output voltage tolerance | +/- 0,2V |
| Output noise | 2mV rms |
| Cont. output current at nominal output voltage and 25°C | 30A |
| Maximum output current (10 s) at nominal output voltage | 40A |
| Short circuit output current | 60A |
| Cont. output power at 25°C | 430W |
| Cont. output power at 40°C | 360W |
| Efficiency | 87% |
| Off load current | < 80mA |
| Galvanic isolation | 200V dc between input, output and case |
| Operating temperature range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC connection | Screw terminals |
| Maximum cable cross-section | 16 mm² AWG10 |
