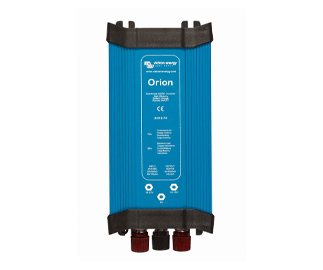

Starlink Orion 12/24-20 DC-DC converter IP20
Description
Remote on-off connector
The Victron Orion 12/24-20 DC-DC converter IP20 remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be
operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
| Model | Orion 12/24-20 |
| Input voltage range (V) | 09-18 |
| Under voltage shutdown (V) | 8 |
| Under voltage restart (V) | 10 |
| Output voltage adjustable with potentiometer | yes |
| Output voltage (V) | Adjustable 20-30V ,F set 26,4V |
| Efficiency (%) | 93 |
| Suitable to buffer-charge a battery | yes |
| Can be connected in parallel | yes |
| Continuous output current (A) | 20 |
| Max. Output current (A) | 30 |
| Fan assisted cooling (temp. controlled) | yes |
| Galvanic isolation | no |
| Off load current | < 30mA |
| Remote on-off | yes |
| Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
| DC connection | M6 bolts |
| Weight kg (lbs) | 0,9 (-2) |
| Dimensions hxwxd in mm (hxwxd in inches) | 65x88x195 (2.6x3.5x7.7) |
