Starlink Redarc 25A Dc-Dc Charger (Lv Dual Input)
Description

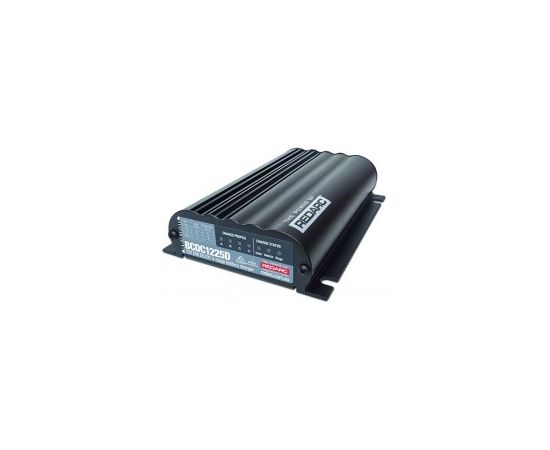

The REDARC BCDC1225D is a 12V 25A In-vehicle DC to DC battery charger suitable for battery types including lithium, AGM, GEL, standard lead acid and calcium.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D will charge from both solar and the alternator simultaneously. And, with built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries, perfect for pairing with a REDARC Lithium battery.
For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH. For higher capacity needs of over 200AH, REDARC recommends the BCDC1240D.
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
| Input (Operating) Voltage | 9 - 32VDC |
| Output System Voltage | 12VDC |
| Maximum Charging Voltage | 15.3V |
| Output Current Rating (Cont.) | 25A |
| Input Fuse Rating | 40A |
| Output Fuse Rating | 40A |
| Type Approval | E-Mark |
| Warranty | 2 Years |
| Standby Current Draw | <100mA |
| Output Power | 375W |
| Width (mm) | 120 |
| Height (mm) | 37 |
| Length (mm) | 165 |
| Weight (kg) | 1 |
Manual - BCDC1225D (BCDC_Dual_Input_Instruction_Manual.pdf, 1,588 Kb) [Download]
