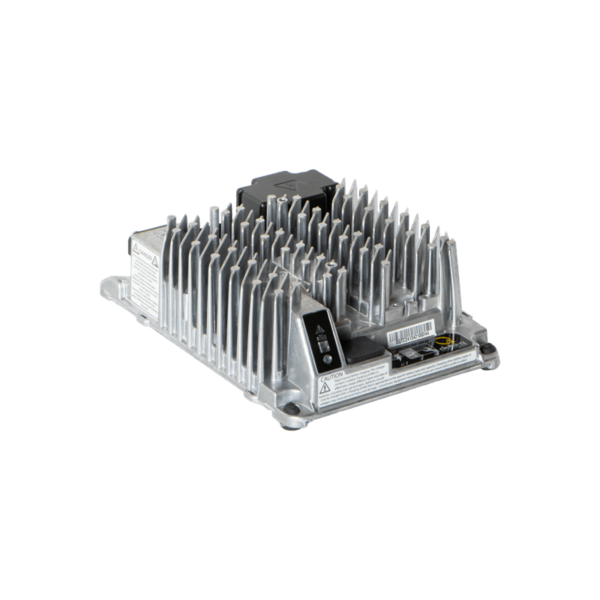

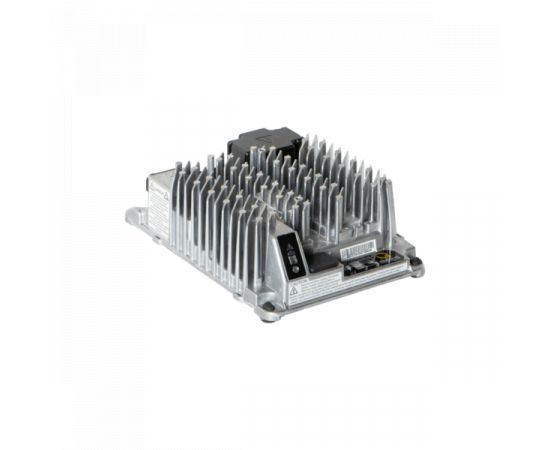

Delta Q Ic650 48V Charger

CODE: 940-0003

$799.00

Out of stock

Description

The IC Series are compact, flexible, user-friendly industrial chargers that optimally charge lead-acid (wet, AGM, gel) and lithium battery packs to provide the best performance for the intended application.

Versatile user interface for easy configuration, operation and diagnostics
Charge cycle data logging for insight into usage and troubleshooting
Common width and feature set enables seamless upgrading for larger packs or faster recharge
times and provides familiar interface for all users

Electrical

Max DC Output Power	650 W
Max DC Output Current	13.5 A
AC Input Voltage Range	85-270 VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium

Mechanical Design

Dimensions	25.2 x 18.6 x 8 cm / 9.9 x 7.3 x 3.1”
Weight	3 kg / 6.5 lbs
Cooling	Normal operation in any orientation with passive cooling
IP Protection	IP66

Regulatory

Efficiency	93% peak efficiency; California Energy Commission (CEC) and Department of Energy (DOE) compliant
Safety	UL1564, CSA 107.2, EN 60335-2-29, AZ/NZS60335 (RSM)
Emissions	FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
Immunity	EN 61000-3-2, EN 61000-3-3, EN 61000-6-2
