Starlink Blue Smart IP65 Charger 24/8(1) 230V AU/NZ Retail
Description

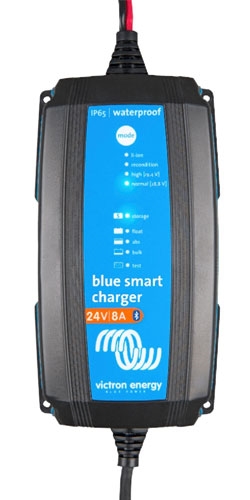

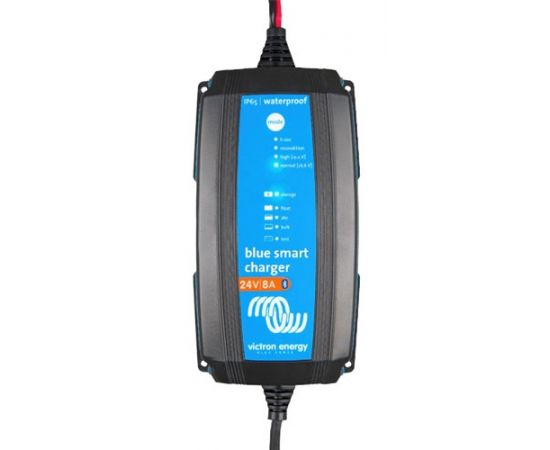

The Victron Blue Smart IP65 Charger 24 Volt,8A 230V is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
The battery is charged, smartly... to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the Victron Connect app.
| Model | 24V /8A |
| Input voltage | 230 VAC |
| Efficiency | 95% |
| Standby power consumption | 0.5 W |
| Minimum battery voltage | Starts charging from down to 0V |
| Charge voltage 'absorption' | Normal: 28.8,4V High: 29.4V Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage 'storage' | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge current | 8A |
| Low current mode | 3A |
| Temperature compensation(lead-acid batteries only) | 32 Mv/°C |
| Can be used as power supply | Yes |
| Back current drain | 0.7 Ah/month(1 mA) |
| Protection | Rreverse polarity / Output short circuit / Over temperature |
| Operating temp. range | -40 to 60°C (Full rated output current up to 30°C)(cables retain flexibility at low temperature) |
| Humidity (non-condensing) | max 95% |
| Battery-connection | Black and red cable of 1.5 meters |
| 230 V AC-connection | Cable of 1.5 meter with CE 7/16,CE 7/17,BS 1363 plug(UK) or AS/NZ S3112 plug |
| Protection category | IP65(Splash and dust proof) |
| Weight kg | 0.9kg |
| Dimensions (hxwxd) | 60x105x190 mm |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
Datasheet - Victron Blue Smart IP65 Charger 24 Volt, 8A 230V (Folder-A5-Blue-Smart-IP65-Charger-230V_EN_web.pdf, 1,135 Kb) [Download]
