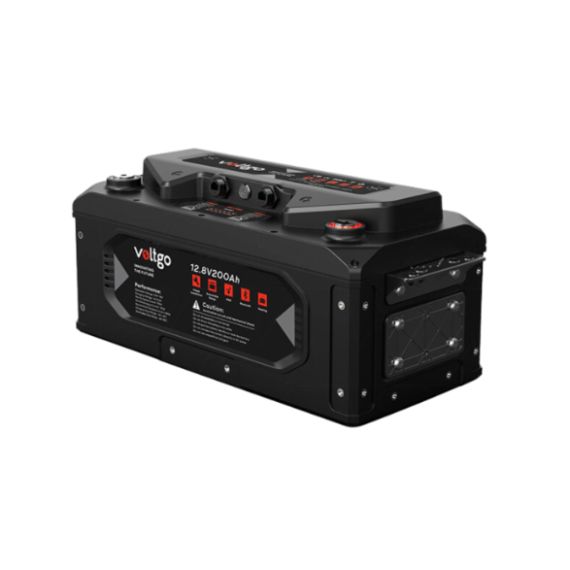

Voltgo 12V 200AH Lithium Battery
Easy System Expansion
This VoltGo VLRV2560A Lithium Iron Phosphate battery can be connected in up to 16 in parallel (16P) – NO SERIES Connection allowed.
Let Your Battery Talk to You
No more guesswork! Connect to your battery from your phone or tablet for real-time monitoring of your battery’s status, including voltage, state of charge, consumption, health and cycle count.
Intelligent BMS
Worry less about your battery with the smart battery management system, which offers protection against short circuit, over/under voltage and over/under temperature fluctuations. When multiple modules are used in a system, the self-balancing function also keep all batteries working together to extended service life.
Fire Protections
VoltGo batteries lead the way in safety with their UL94 V-0 rated flame retardent cases, and in-built aerosol fire suppression system as the last line of defence to ensure safe operation and swift fault mitigation.
Smart Integration
The top mounted panel features an ON/OFF switch, State of Charge indicator, Alarm and Function LEDs. The 2 CAN/RS485 Comms Ports integrate your VoltGo batteries into existing control/monitoring systems, via a Victron Energy GX device*, to give full visibility and tracking. *The VRLV2560 and VRLV5120 series batteries support communication with Victron inverters via Cerbo GX and Victron Energy Ekrano GX by Victron Energy VE.Can to CAN battery cannot directly plug into the Victron inverter
SMART-GO Fastening System
Removable handy brackets come fixed to the batteries for use as handles during transport. VoltGo batteries come standard with numerous nutserts fitted within the case to utilise the included brackets and fish plates to securely fasten your battery to the floor, wall, or to other batteries when connected together. Expandable up to 16 batteries in Parallel, the VLRV2560A’s intelligent BMS ensures all modules within the system are balanced and working together.
IP65 Water and Dust Resistant
Ensure peace of mind during your next fishing or water sports adventure. The VLRV2560A is IP65 protected against dust and offer significant protection against water splashes and sprays, making them suitable for nearly any application.
Superior Construction Quality
The simple maintenance free design allows for a houses a 4S4P battery construction, Bluetooth capable BMS within the IP65 rated and impact resistant rugged ABS casing. The detachable lid allows for battery servicing / repair should the need arise*. *performed by qualified service agents only to avoid voiding warranty
| Specifications: | |
|---|---|
| Voltage (V) | 12.8V |
| Capacity (Ah) | 200Ah |
| Watt Hour (Wh) | 2560Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 200A |
| Max. PEAK discharge current | 250A (30 seconds) |
| Discharge cut-off voltage | 10V |
| Charge Voltage | 14.0V - 14.4V |
| Max. continuous charge current | 150A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +45°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature |
| Ingress Rating | IP65 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 16P* |
| Case structure | UL94 V-0 flame retardent serviceable ABS Case design |
| Compliances | UL1973, UN38.3, IEC62619 |
| Warranty | 10 years |
* No Series Connection Allowed
