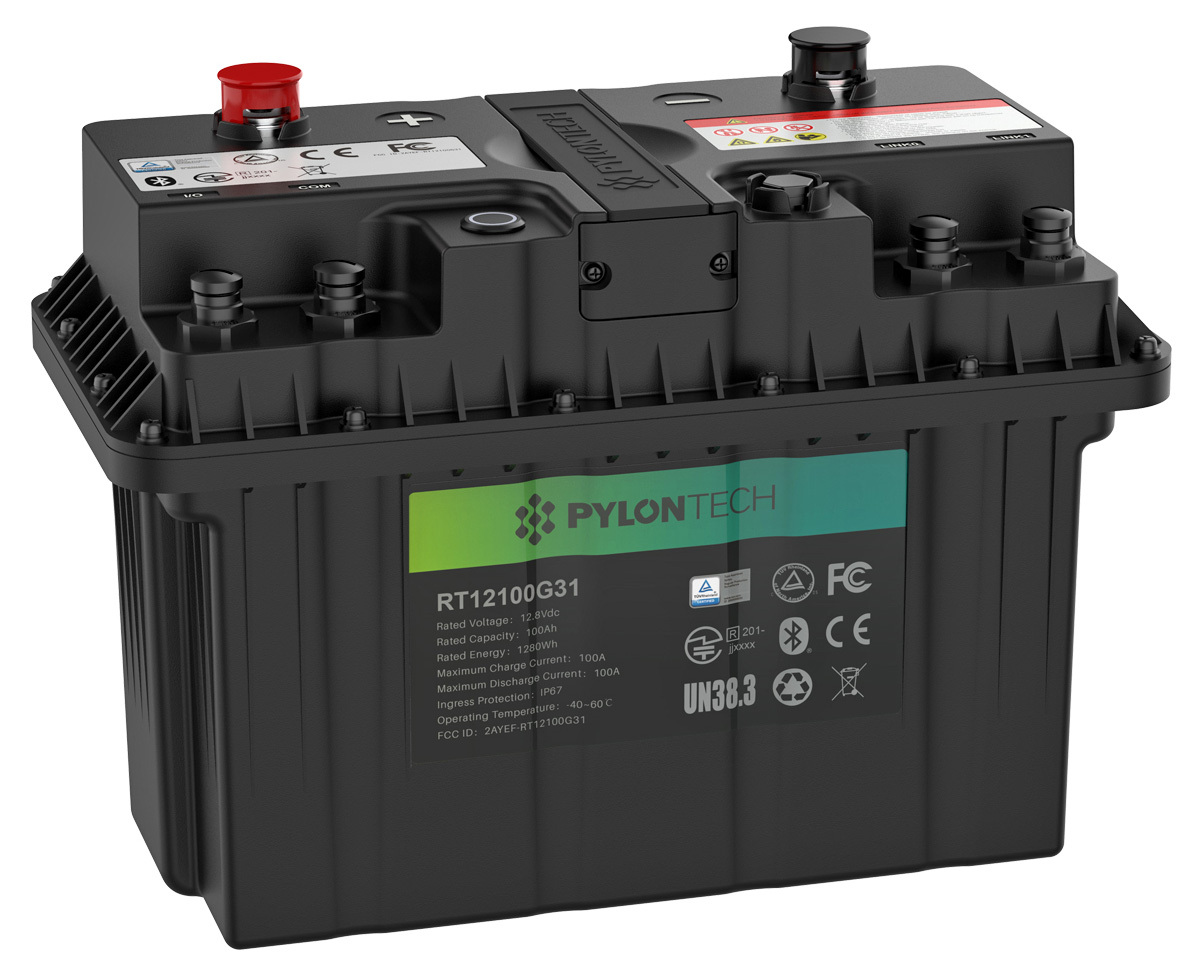

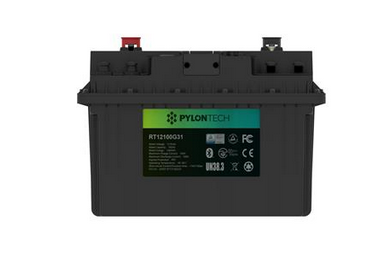

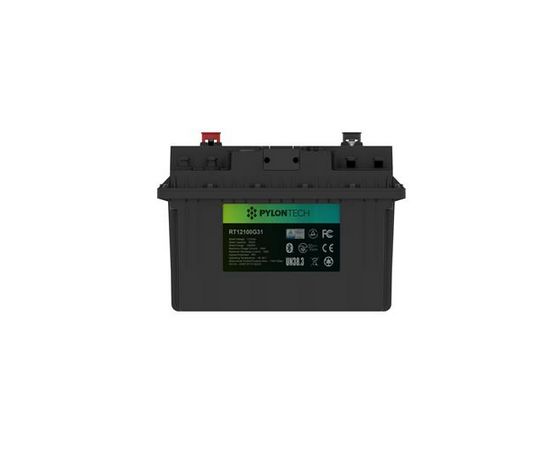

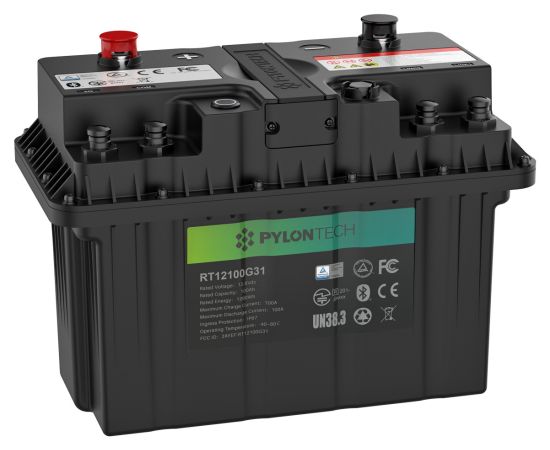

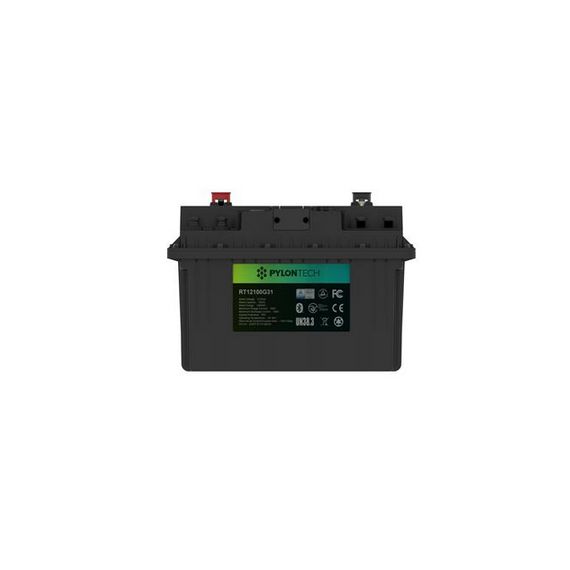

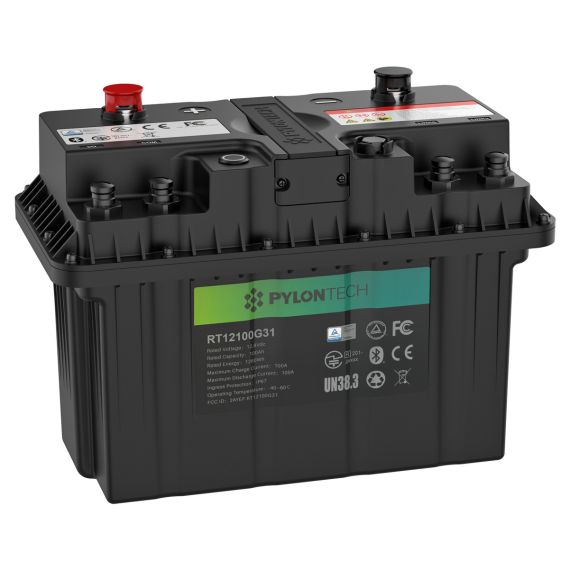

Telstra T-Partner Services Toowoomba Pylontech 12V 100AH Lithium Battery with CANBUS & High Rate Discharge
Description
The Pylontech 12V series are all-purpose lithium-ion battery modules. With cutting edge LFP (Lithium Iron Phosphate) cells, embedded BMS (Battery Management System) and robust mechanical design, Pylontech RT12V series products provide inherent safety, extremely high reliability and zero maintenance. Compared to lead-acid based batteries with the same capacity, the Pylontech batteries have twice the usable capacity, more than 3 times the life cycle, with only 40% of the weight. They are the perfect replacement to lead acid-based batteries in applications such as marine, caravan/RV, golf carts and solar storage. A superior solution in all applications.
Features
- Huge Expansion Options
- High Rate Discharge
- Up to 6000 Cycles (90% DoD)
- IP67 for High Water & Dust Protection
- Auto Balance - connects multiple batteries in parallel without internal state non-uniformity issues
- Ultra Safety - The battery management system (BMS) provides comprehensive protection to the battery and manages the charging/discharging procces wisely
- Uncompromising quality - state of the art battery cells ensure a lifespan of more than 4500 cycles, 100A/module continuous discharge current, and a wide range of operation temperature
- Communication - CAN, RS485, Bluetooth, Dry Contact enable data tranmission to meet the needs of different usage scenarios
Specifications
- 6000 Cycles (90% DoD)
- Max Continuous Discharge Currant: 100a
- Max Pulse Discharge Currant (30 Sec): 200a
- Max Continuous Charge Currant: 100a
- Operating Discharge Temp: -20℃ to 60℃
- Operating Charge Temp: 0℃ to 60℃
- Short Circuit Protection
- IP67 Ingress Rating
- Up to 4S 4P (48V)
- Up to 2S 8P (24V)
- Up to 1S 16P (12v)
- G31 Size
- 5 Year Warranty
