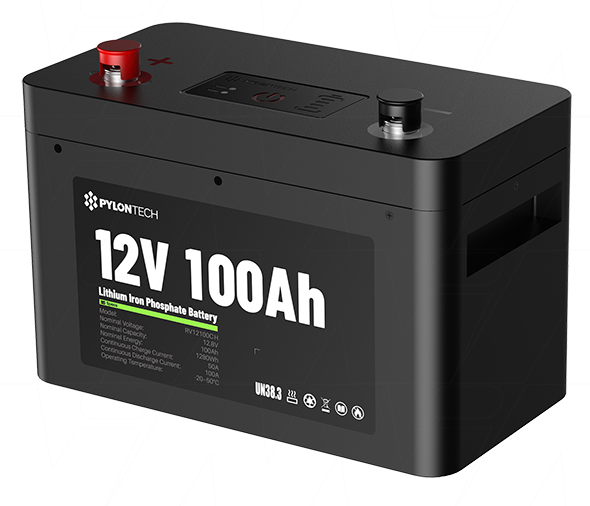

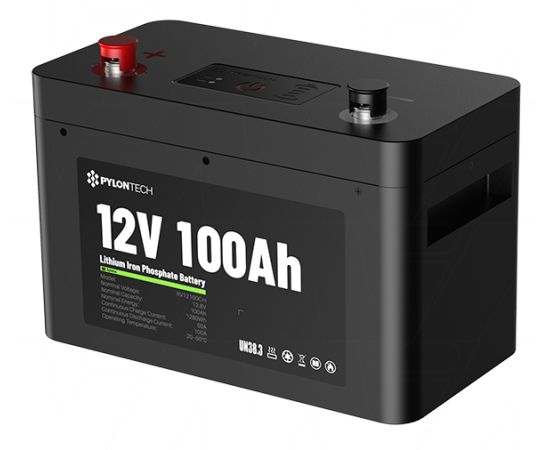

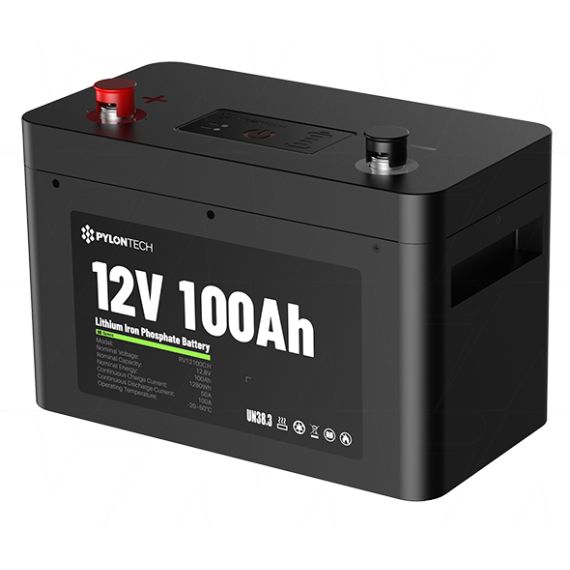

Starlink PYLONTECH 100AH LITHIUM BATTERY
Description
The RV12100CH is a 2nd generation battery solution designed for energy storage applications and is an ideal alternative to deep cycle lead acid batteries.
Suitable for use in Off-Grid & Battery back-up applications ,Recreational vehicles, trucks and small cabins, this Pylontech battery is approximately 50% lighter, with 30% higher energy density than comparable capacity lead-acid batteries.
Featuring an advanced "array aware" BMS with multiple safety functions, and capable of over 4000 cycles, the RV12100CH can be used in systems of up to 8 in parallel (10.24kWh). The self-balancing feature ensures all batteries in the system are balanced to ultimately increase service life and maximise your ROI.
The top mounted interface panel features a press-button State of Charge (SoC) indicator for fast capacity checks, Handy ON/OFF button to isolate when in storage, plus LED indicator for battery status or error identification.
One of the big improvements to this tried and tested product includes the addition of an internal heating film to aid in the charging of the batteries if exposed to sub-zero environments. This innovative feature basically uses a battery charger to engage the heater, which increases the internal temperature of the battery to reach 0 degrees Celcius, to then start charging the battery.
The RV12100CH utilises cutting edge LFP cells encased in a rigid frame, embedded smart BMS and housed in a ruggedised IP20 rated metal case.
*We strongly recommend only using this battery is an indoor or moisture-free environment.
Features
- 100A max cont dishcagre (200A Peak for 10 Seconds)
- Over 4000+ cycles to 80% DoD for superior service life
- Scalable up to 8 units in parallel (10.24kwh)
- On board state of charge indicator for quick capacity checks
- IEC62619 and UN38.3 trnasport Certified
- in-built Heater film for use in sub-zero conditions
- ON/OFF button to isolate when not in use
- lightweight only 12KG
Specifications:
| Voltage (V) | 12.8V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 1280Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >4000 cycles (80% DoD @ 25°C) |
| Max. continuous discharge current | 100A |
| Max. PEAK discharge current | 200A (10 seconds) |
| Discharge cut-off voltage | 10V |
| Charge Voltage | 14.0V - 14.4V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +50°C |
| Operating charge temperature | -20°C to +50°C (charger engages heater film until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +60°C |
| State of Charge display | Yes |
| Short circuit protection | Yes |
| Ingress Rating | IP20 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | Up to 8P* (max. continuous discharge current of 0.5C when in parallel) |
| Case structure | Rugged mechanical design |
| Certifications | IEC62619, UN38.3 approved |
| Warranty | 3 years |
* No Series Connection Allowed.
