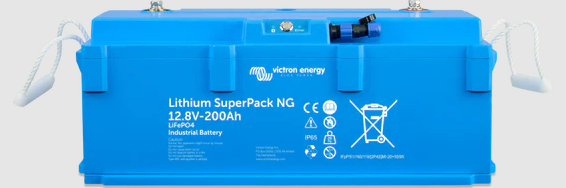

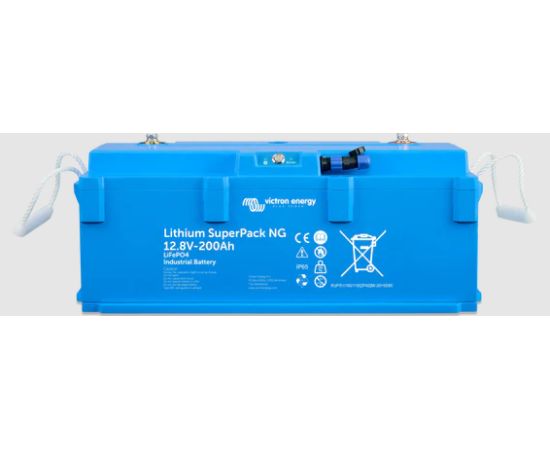

Lithium SuperPack 12,8V/200Ah NG

Description

Victron SuperPack NG Lithium Battery: Integrated Energy Storage for Demanding Applications

Advanced Lithium Iron Phosphate Technology with Built-In Intelligence

The Victron SuperPack NG series delivers a complete, ready-to-use energy storage solution by integrating high-performance Lithium Iron Phosphate (LiFePO₄) cells with an advanced Battery Management System (BMS) and Bluetooth communication. This integration eliminates the complexity of external components, providing a reliable and safe power source for off-grid, mobile, and backup applications. With a round-trip efficiency of 93%, these batteries ensure minimal energy loss during charge and discharge cycles, maximising the usable capacity of your system.

Unlike conventional lead-acid batteries, the SuperPack NG offers significantly higher energy density, faster charging, and a longer service life. The built-in BMS actively protects against overvoltage, undervoltage, overtemperature, and overcurrent conditions, safeguarding your investment and ensuring consistent performance. The integrated self-heating function, drawing up to 65 W, automatically warms the cells in cold environments, enabling safe charging at temperatures as low as -30°C, a critical advantage for installations in Australia's alpine regions or winter touring.

Seamless Monitoring and Control via VictronConnect

Every SuperPack NG battery features built-in Bluetooth, allowing direct connection to the VictronConnect app on your smartphone or tablet. This provides real-time visibility of key parameters including voltage, current, state of charge (SoC), and temperature. The intuitive interface also allows you to switch the battery on or off remotely, check historical data, and diagnose system health without additional displays or wiring. An External Feedback Signal (EFS) port provides a wired output for integration with alarms, relays, or other Victron equipment, enabling automated responses to low SoC or protection events.

Robust Design for Harsh Environments

Encased in an IP65-rated housing, the SuperPack NG is protected against dust ingress and low-pressure water jets, making it suitable for installation in exposed locations such as vehicle underbody compartments, marine engine bays, or outdoor equipment enclosures. The robust M8 female threaded inserts (20 mm depth including nut screws) provide secure, low-resistance power connections, while integrated rope handles facilitate safe handling during installation. The battery can be mounted upright or on its long side, provided flat horizontal support is maintained, offering flexibility in space-constrained layouts.
