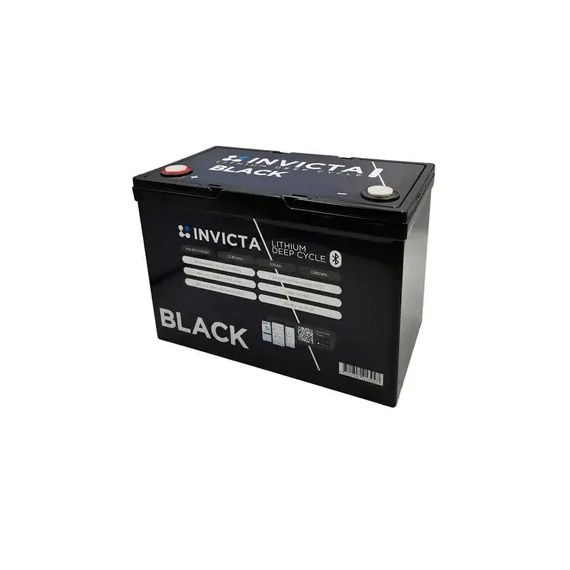

INVICTA BLACK 12V 100AH LIFEPO4 W/ BLUETOOTH

INVICTA BLACK 12V 100AH LIFEPO4 W/ BLUETOOTH
$579.00
SNLB12V100BT
+ −
Compare

Features and Benefits

  • Large number of cycles >2000 (100% DoD)
    Up to 8 times cycle life of SLA lowering your total cost of ownership
  • Safe and stable chemistry & Integrated BMS
    The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
  • Greater capacity utilisation – 60% more than SLA
    Gives longer runtime than equivalent SLA
  • High energy density (less than half of the weight of SLA)
    Lowering total weight of application
  • Fast recharge
    Battery is charged and ready to be used sooner
  • Flat Discharge Curve
    Longer run time & more efficient use of capacity
  • Extremely low self-discharge rate
    Can sit unused for longer periods of time
  • Bluetooth Monitoring
    Keep track of your battery’s status with advanced Bluetooth monitoring system. Easily monitor battery voltage, state of charge, and more from the convenience of your smartphone.
  • IEC 62619 Certified (Cell)
  • Invicta Quality & Confidence
    Robust Internal Design. Engineered To Invicta's Specifications
  • 5-Year Warranty

Invicita Black Smartphone AppMonitor Your Invicta Black Battery

The Invicta Black App is currently being developed. In the meantime, please use the Invicta Hybrid App, which is linked below.

Click to download for Android (Invicta Hybrid)

Click to download for Apple (Invicta Hybrid)

Nominal Voltage 12.8V
Nominal Capacity (25ºC, 0.33C) 100Ah
Terminal M8
Length (mm) 306 ± 2mm
Width (mm) 169 ± 2mm
Height (mm) 211 ± 2mm
Weight 10.5kg
Max Charge Voltage 14.6 ± 0.1V
Standby 13.8 ± 0.1V
Cut off Voltage 11V
Max. Discharge Current 100A
Max. Pulse Discharge Current (3 Sec) 300A
Max. Charge Current 100A
Recommended Current Charge ≤50A
Cycle Life (100% DoD) ≥3000
Operating Temp - Charge 0 - 50ºC
Operating Temp - Discharge -20 - 55ºC
Short Circuit Release Load Release
Max. Series / Parallel Configuration 4S/4P
Dust & Water Resistance (IP) IP65
Bluetooth Connectivity Yes
IEC Certification No. 62619
SKU INV.SNLB12V100BT
Brand Invicta Lithium
Shipping Weight 11.0000kg
Shipping Width 0.170m
Shipping Height 0.220m
Shipping Length 0.310m
Shipping Cubic 0.011594000m3
Unit Of Measure ea

SNLB12V100BT Data Sheet (SNLB12V100BT.pdf, 631 Kb) [Download]
