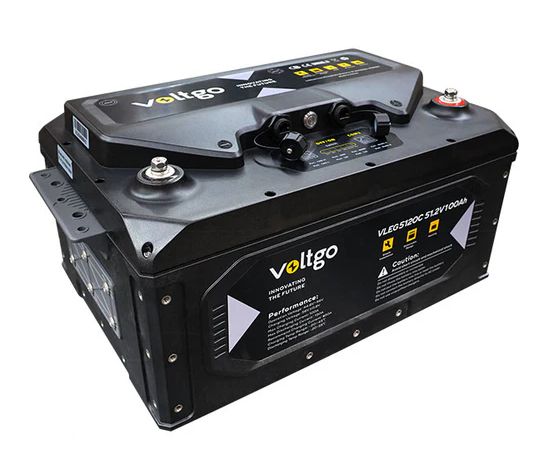

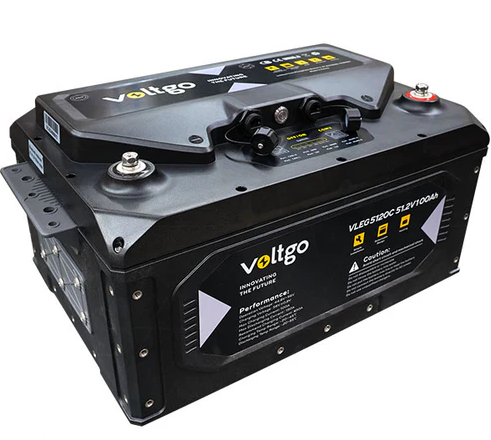

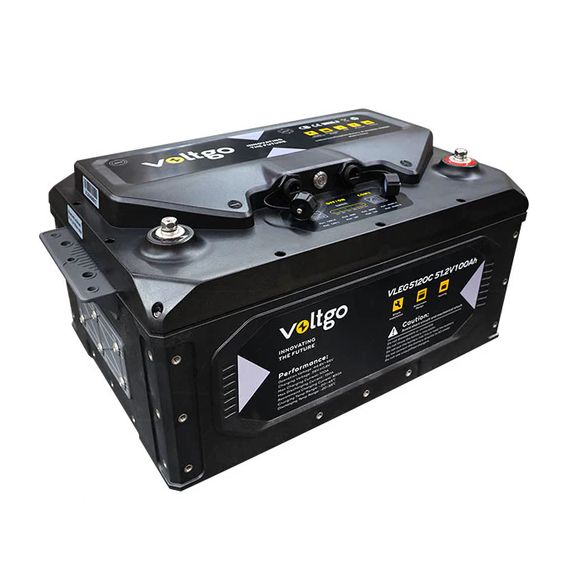

Voltgo 48V 100AH Lithium Golf Cart Battery
| Voltage (V) | 51.2V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 5120Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 150A |
| Discharge cut-off voltage | 44.8V |
| Charge Voltage | 44.8V - 56V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +45°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature |
| Ingress Rating | IP67 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 16P |
| Case structure | UL94 V-0 flame retardant serviceable ABS Case design |
| Compliances | UL1973, UN38.3 |
| Warranty | 5 years |
