Starlink Battery Switch 300A (900A Surge) On/Off Red
Description

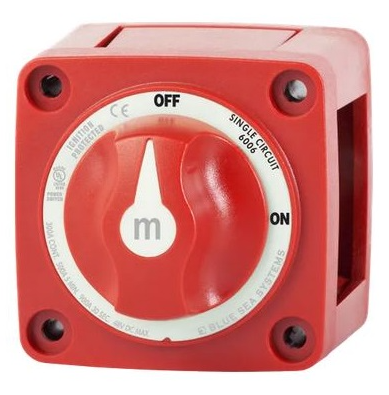

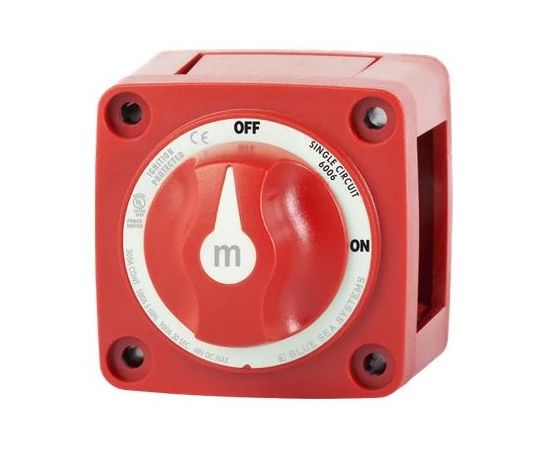

Blue Sea Systems m-Series Mini On-Off Battery Switch with Knob - Red Blue Sea Systems BS-6006B m-Series Mini On-Off Battery Switch with Knob - Red
Blue Sea Systems BS-6006B m-Series Mini On-Off Battery Switch with Knob - Red
Switches a single battery to a single load group
Switches a single battery to a single load group
- Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65lb (0.29 kg) |
