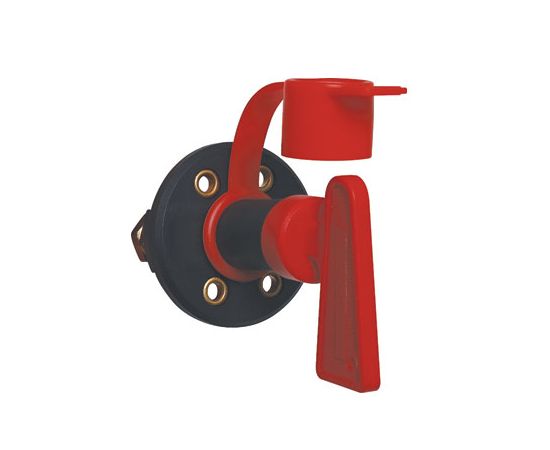

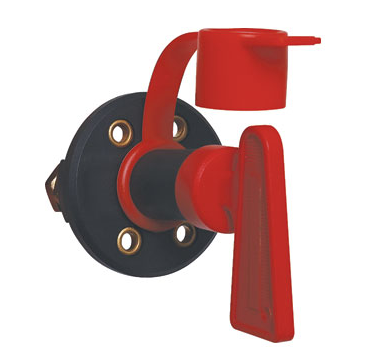

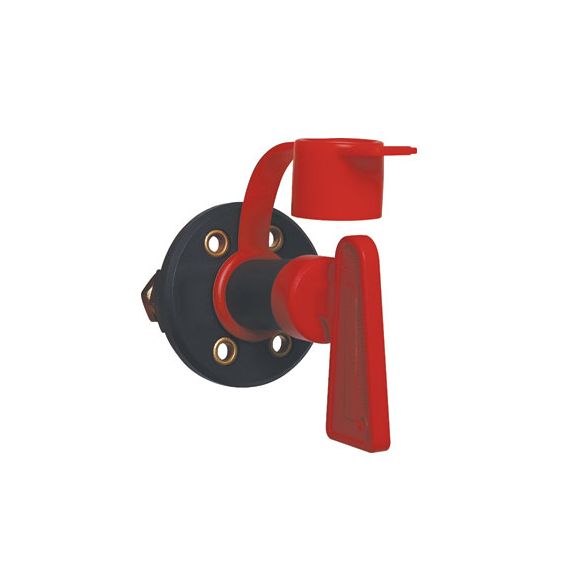

BATTERY ISOLATOR KEY SWITCH
Features
- Sturdy construction
- Great compatibility
- Safety protection
- Wide range of applications
- Performance
- Circuit: 2P, ON/OFF
- Rated Voltage: 60V
- Rated Current: 300A
- Insulation Resistance: ≥100MΩ
- Contact Resistance: ≤50MΩ
- Dielectric Strength: ≥1500V AC (min)
- Cycle Life: ≤10,000 cycles
- Material
- Spring: Spring steel wire
- Nut: Brass H59
- Shaft Terminals: Brass H59 M10
- Contact Plate: Manganese steel
- Base/Housing/Bracket/Insert/Handle: PA66+10%GF
*Specifications are subject to change without notice.
