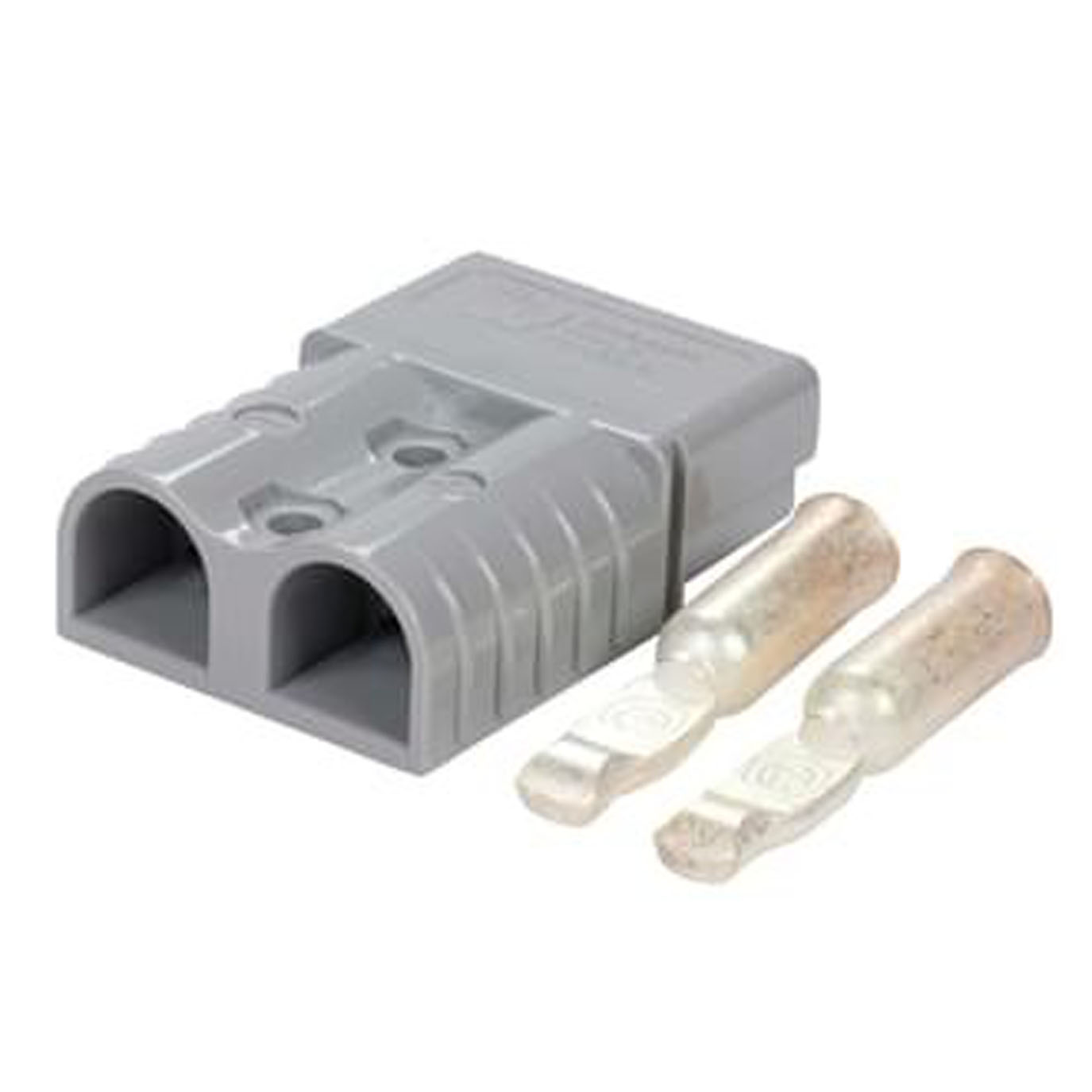

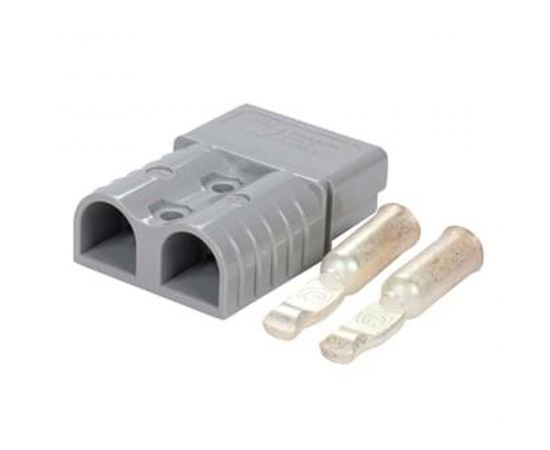

Telstra T-Partner Services Toowoomba Anderson Plug Grey 120 Amp Single
Description
Anderson Connector 120A Grey 2AWG Contacts Genuine Anderson Power Products.- UL Rated for hot plugging up to 120 Amps
- UL Rated to 600V
- Genderless (flip 180° to insert)
- Keyed housings prevent incorrect mating
| Dimensions | 46 x 64 x 20 |
|---|---|
| UL Maximum Current Rating (2AWG) |
120A |
| UL Voltage Rating AC or DC |
600V |
| Contact Wire To |
2AWG |
| Contact Wire To (metric) |
13.3mm² |
| Maximum Wire Insulation | 15.24mm Ø |
| Average Contact Resistance (milliohms) | 0.136 |
| Contact Retention Force | 50 lbf |
| No Load Contact/Disconnect Cycles | >10,000 |
| Hot Plug Contact/Disconnect Cycles | >250 (60A 120V) |
| Operating Temperature Range | - 20°C to +105°C |
| Flammability - Housing Material | UL94 V-0 |
| Brand |
ANDERSON POWER PRODUCTS |
