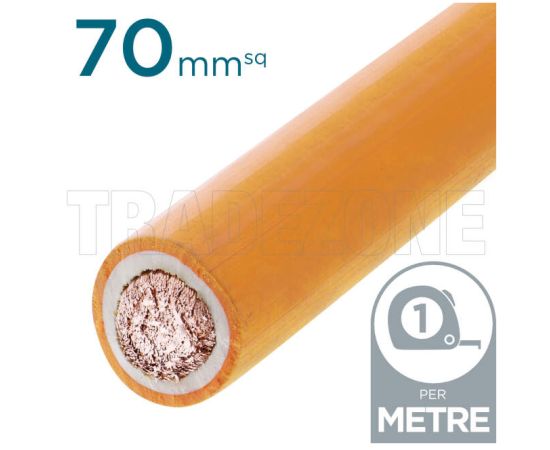

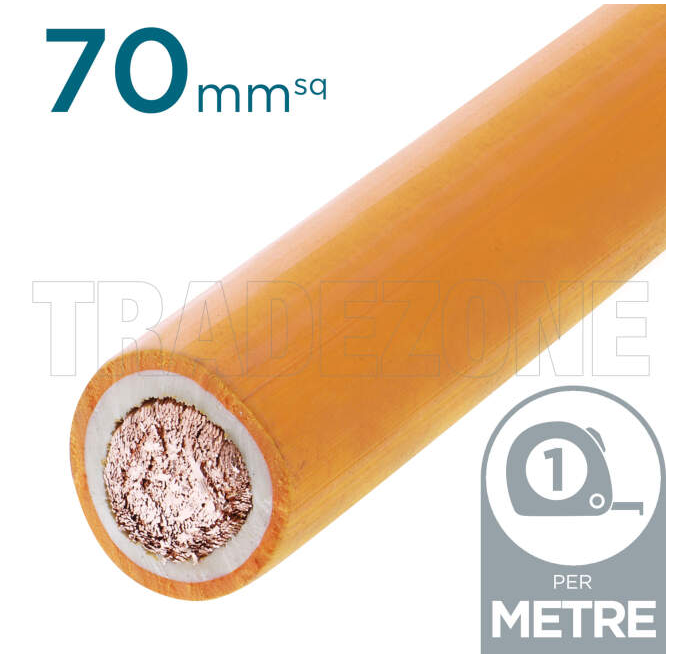

Starlink 70mm2 HFS 110deg SDI 0.6/1kV Org 25M DRUM
Home/Caravan Power & Electrical/Accessories & Installation/Cable & Leads/70mm2 HFS 110deg SDI 0.6/1kV Org 25M DRUM
Description
0.6/1kV electric cables use for main power and control systems applications, standard to AS/NZS5000.1. BC(CL6)/X-HF-110/HFS-110-TPBrand
DKSH Australia
Part Number
HF1X70SDI
Cable Conductor Material
Copper Class 6
Cable Core Colours
Orange
Cable Drum Length
Per Metre
Cable Insulation & Sheath Material
X-HF-110/HFS-110-TP
Cable Sheath Colour
Orange
Cable Size mm
70mm
Cable Voltage
600/1000 Volts
Ordinary or Heavy Duty
Ordinary Duty
Cable Conductor Material
Copper Class 6
Cable Drum Length
Per Metre
Cable Insulation & Sheath Material
X-HF-110/HFS-110-TP
Cable Sheath Colour
Orange
Cable Size mm
70mm
Cable Voltage
600/1000 Volts
Number of Cores
1
Ordinary or Heavy Duty
Ordinary Duty
Cable Conductor Material
Copper Class 6
Cable Sheath Colour
Orange
Cable Size mm
70mm
Number of Cores
1
Cable Drum Length
Per Metre
Cable Size mm
70mm
Shipping Information
Freight Levy
Freight Free on TZ Couriers for orders over $500
Weight (kg)
1.0000
Length Packaging (mm)
1000
Height Packaging (mm)
17
Width Packaging (mm)
17
Barcode
2000100926444
- Temperature Range: -40 to +110℃.
- Rated Voltage: 0.6/1kV AC 0.9/1.5kV DC
- Min Bending Radius: 6 X Cables Diameter after installed, 12 X Cables Diameter during installing.
Conductor: Annealed bare copper wire conductor standard to AS/NZS1125 class 6.
Insulation: X-HF-110 comply to AS/NZS3808, insulation color identification see below. 1 Core: Natural
Outer Sheath: Flexible HFS-110-TP comply to AS/NZS3808, color is Orange.
Relevant Standard: AS/NZS1125, AS/NZS3808, AS/NZS5000.1, IEC60332-1
Warranty Information (From Install)
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Method
Return to Tradezone
Warranty Period
1 Year
