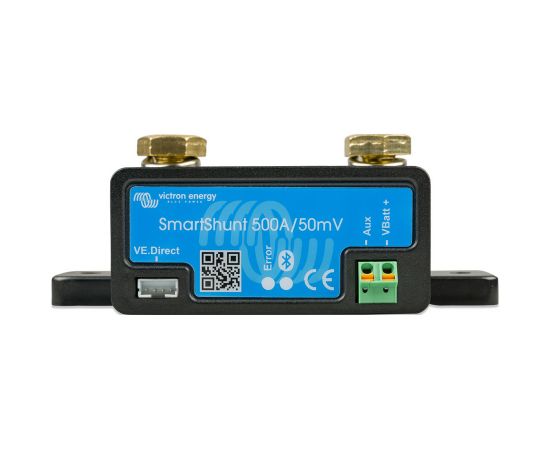

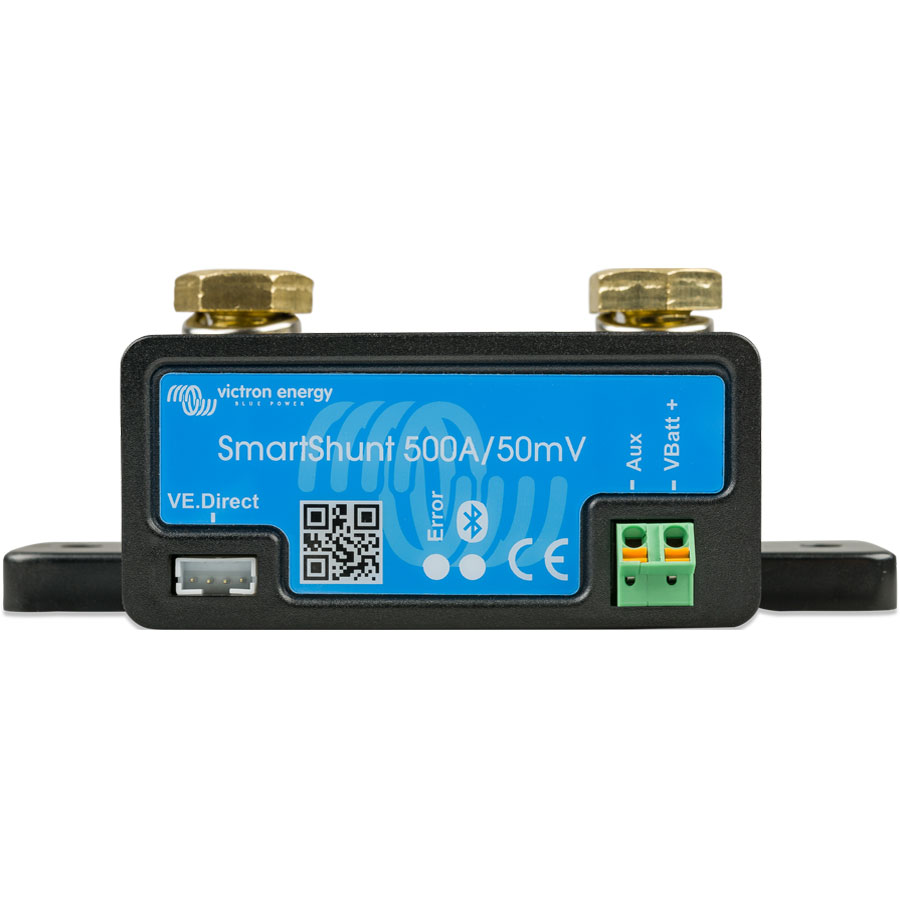

Telstra T-Partner Services Toowoomba SmartShunt 500A/50mV
Description
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
|
Supply voltage range |
6,5 - 70 VDC |
|
Current draw |
< 1mA |
|
Input voltage range, auxiliary battery |
6,5 - 70 VDC |
|
Battery capacity (Ah) |
1 - 9999 Ah |
|
Operating temperature range |
-40 +50°C (-40 - 120°F) |
|
Measures voltage of second battery, or temperature, or midpoint |
Yes |
|
Temperature measurement range |
-20 +50°C |
|
VE.Direct communication port |
Yes |
|
Current |
± 0,01A |
| Voltage | ± 0,01V |
| Amp hours | ± 0,1 Ah |
| State of charge (0 – 100%) | ± 0,1% |
| Time to go | ± 1 min |
| Temperature (if optional temperature sensor connected) |
± 1°C/°F (0 - 50°C or 30 - 120°F) |
| Accuracy of current measurement | ± 0,4% |
| Offset | Less than 20 / 40 / 80 mA |
| Accuracy of voltage measurement | ± 0,3% |
| Dimensions (h x w x d) | 500A: 46 x 120 x 54 mm |
| Protection category | IP21 |
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3 |
| Automotive | EN 50498 |
| Cables (included) | Two cables with 1A fuse, for ‘+’ connection and starter battery or midpoint connection |
| Temperature sensor | Optional (ASS000100000) |
| A note regarding the range of the Bluetooth signal |
The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt. |
