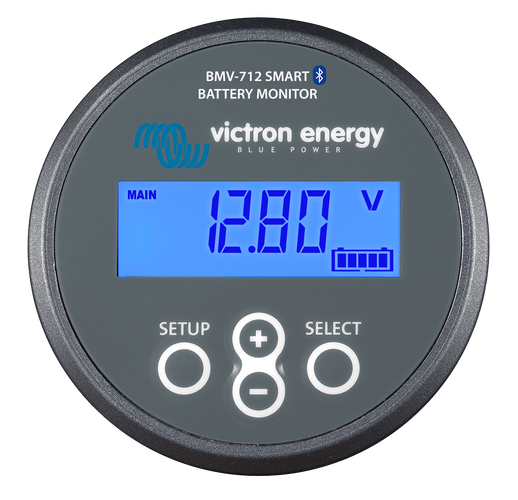

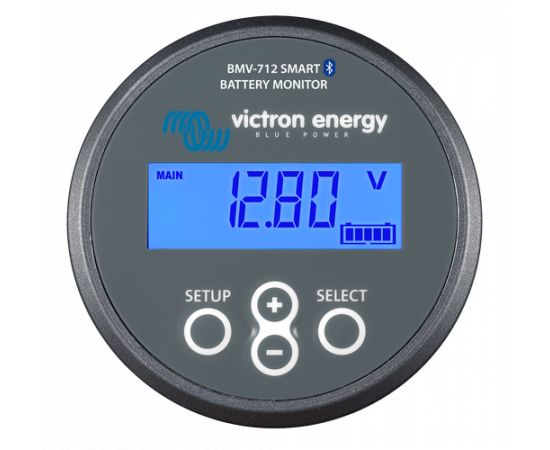

Starlink Battery Monitor BMV-712 BLACK Smart Retail
Home/Caravan Power & Electrical/Accessories & Installation/Battery Monitoring/Battery Monitor BMV-712 BLACK Smart Retail
Description
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era.With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
To read more about the full BMV range & accessories, see this blog.
| Supply voltage range | 6.5 - 70 VDC |
| Current draw, back light off | < 1mA |
| Input voltage range, auxiliary battery | 6.5 - 70 VDC |
| Battery capacity (Ah) | 1 - 9999 Ah |
| Operating temperature range | 40 +50°C (-40 - 120°F) |
| Measures voltage of second battery, or temperature, or midpoint |
Yes |
| Temperature measurement range | -20 +50°C |
| VE.Direct communication port | Yes |
| Bistable relay | 60V / 1A normally open (function can be inverted) |
| Current | ± 0.01A |
| Voltage | ± 0.01V |
| Amp hours | ± 0.1 Ah |
| State of charge (0 – 100%) | ± 0.1% |
| Time to go | ± 1 min |
| Temperature (0 - 50°C or 30 - 120°F) | ± 1°C/°F |
| Accuracy of current measurement | ± 0.4% |
| Accuracy of voltage measurement | ± 0.3% |
| Installation | Flush mount |
| Front | 63mm diameter |
| Front bezel | 69 x 69mm (2.7 x 2.7 inch) |
| Shunt connections bolts | M10 (0.3937 inch) |
| Body diameter and depth | 52mm (2.0 inch) and 31mm (1.2 inch) |
| Protection category | IP55 (not intended for outdoor use |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 |
| Shunt (included) | 500A / 50mV |
| Cables (included) | 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection |
| Temperature sensor | Optional (ASS000100000) |
