Starlink 5/1 Watt 80 Channel Compact Waterproof U
Description

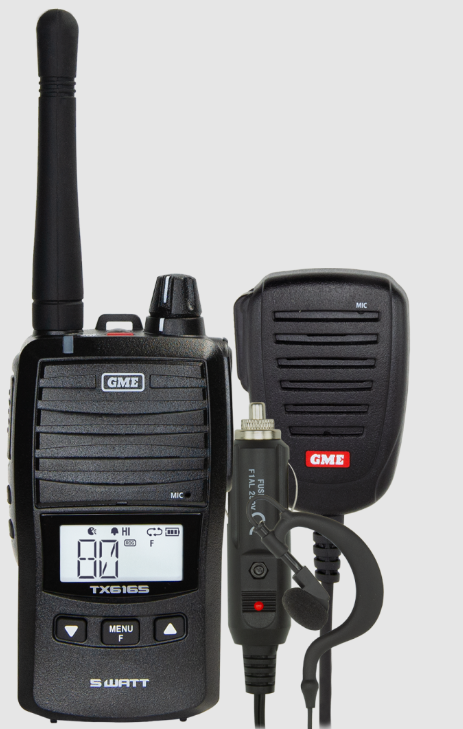

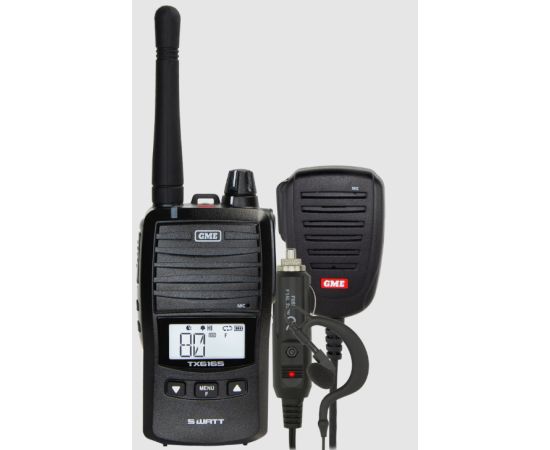

The TX6165 is our newest 5 watt Handheld UHF CB radio. New, class-leading features such as the large, high-contrast LCD display, 2 Watt speaker, and a user-programable button make it stand out from the field.
The TX6165 features 5/1 watt switchable transmission power, VOX hands-free mode, built-in LED torch, and up to 30 hours battery life.
Also featuring rugged IP67 Ingress Protection, the TX6165 is built tough for outstanding performance and years of reliable use in the harshest Australian environments,
These radios are serious equipment for users who need rugged and reliable UHF CB communication, for both work and play.
Specifications
GENERAL
Compliance
AS/NZS 4365 for radio communications
equipment in the UHF citizen band and
personal radio service.
Frequency Range TX: 476.425 MHz – 477.4125 MHz
Number of Channels 80 CB
Channel Spacing 12.5 kHz
Scanning Speed 20 Channels Per Second
(50 ms per channel)
Antenna 50Ω, SMA Female
Supply Voltage 7.4 V DC
Battery Type Li-Ion
Battery Capacity 2600 mAh
Operating Time† 18h (5 W)
30h (1 W)
TRANSMITTER
RF Output
High: 5W
Low: 1W
Frequency Stability ± 2.5 PPM
Modulation FM
Spurious Emission < -40 dBm
Maximum Deviation ± 2.5 kHz
Modulation Distortion < 5% @ 1kHz / 1.5kHz Deviation
RECEIVER
Sensitivity -121 dBm for 12 dB SINAD
Adjacent Channel Selectivity > 60 dB
Audio Output Power 2 W (8Ω)
Audio Signal to Noise 34 dB (SINAD)
MECHANICAL AND ENVIRONMENTAL
Dimensions 59 mm (W) x 35 mm (D) x 102 mm (H)
(not including antenna)
Weight 286 Grams (with battery and antenna)
Operating Temperature -10° C to +60° C
Ingress Protection* IP67 (dust tight and waterproof)
Accessory Connector GME 3.5 mm / 2.5 mm stereo jack
PACKAGING SPECIFICATIONS (TX6165X)
Dimensions 110mm (W) x 92mm (D) x 317mm (H)
(not including antenna)
Weight 645 Grams (with battery and antenna)
NOTE: All values are typical unless otherwise stated and are subject to
change without notice or obligation.
ACCESSORIES
BP026 Lithium-ion Battery Pack 2600mAh
BCD020 Single Rapid Desktop Charger
BCD021 Dual Rapid Desktop Charger
BCV013 12V DC Vehicle Charging Cradle
MB207HH Magnetic Mount and Clip
MC011 IP67 Speaker Microphone
HS015 Earpiece Style Microphone
AE4026SMA Magnetic Antenna with SMA Connection
BCM001 Six Bay Desktop Charger
ACC6160 Accessory Kit
ACC6160CK In-Car Accessory Kit
MB060 Replacement Belt Clip
PS002 1 Amp Power Supply
