Rfi Cd5000 Antenna Black Detatchable Whi
Description

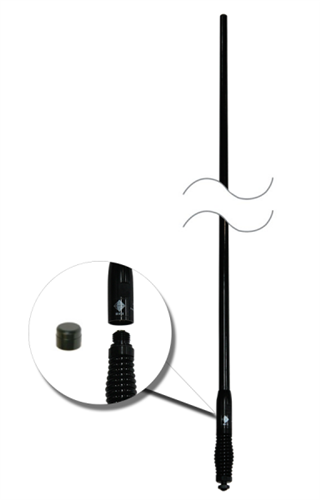

CDQ5000-B UHF Removable Antenna Whip
RFI's new Q-Fit® CDQ5000-Black features the new Q-Fit® removable whip system for fast and simple removal when entering low height areas (e.g. car parks, garages) and when using car wash's.
- Suits all Uniden, GME, Oricom, and other major brand radios
- Heavy duty electro-polished stainless steel spring
- Compact 1010mm height design
- Quick removable Q-Fit™ whip system
- Available in both black and white
- Extremely robust fibreglass radome antenna with marine grade chrome plated brass and stainless steel fittings.
The CDQ5000 is a high gain mobile UHF CB antenna providing genuine 5 dBi gain and is ideally suited for use in fringe areas and country applications where performance is critical. It's rugged design and tough construction makes it a highly prized asset in even the harshest environments.
The quick removable Q-Fit™ whip system is designed for fast and simple removal when entering low height areas, car washes or for antenna security. When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas.
This rugged & extremely robust antenna is ideally suited to 4WD bullbar mounting. With a 13mm stud mount and ground plane independant design, this antenna may be installed onto a number of mounting brackets such as mirror mounts, bull bar mounts, gutter mounts or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks. The CDQ5000 can even be used as a base station antenna due to it's ground plane independent design.
Features:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 1010 |
| Mounting | Threaded Stud |
