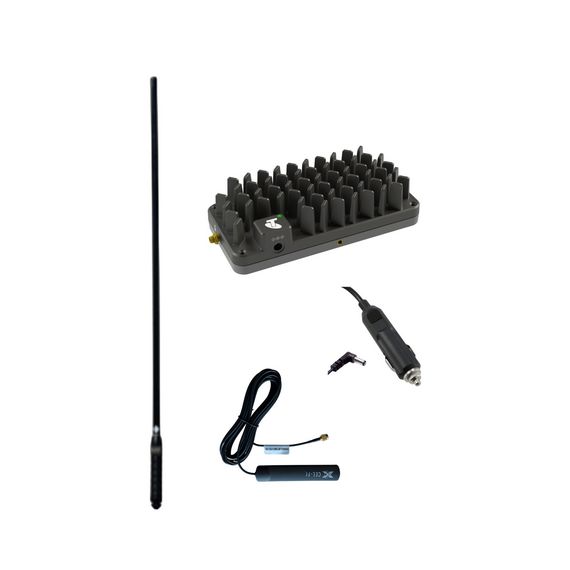

Telstra Go Mobile R41 Bullbar Bundle

Key Features and benefits include:

• Deploy the unit anywhere in the network, with full frequency coverage.
• Latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelized coverage for specific mobile network operator signals.
•  Support for 3G, 4G, and 5G dynamic spectrum sharing (DSS)

The RFI CD8195 Bull Bar Antenna covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and the 5G LTE band (3400-3800 MHz) and are ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the RFI CD8195 Bull Bar Antenna lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver improved consistency in gain, coverage pattern and bandwidth. The RFI CD8195 Bull Bar Antenna includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features and benefits include:

• Ideal for new 5G/LTE networks with true multi-band coverage.
• High gain across all bands making it suitable for fringe and rural applications.

Disclaimer:

1. We'll be switching off 3G from 30 June 2024

Telstra GO ROAM R41 Mobile Repeaters Specifications

• Frequency Bands: 1/3/5/7/8/20/26/28L
• Relay Channel Bandwidths (MHz): 5/10/15/20
• Networks: 3G/4G/5G
• Network Protocols: WCDMA/LTE/DSS
• Network Selection: Automatically (MyWave App set to “Following”)
• Configured to authorised operator: PLMN-IDs
• Duplex Modes: FDD
• # of Relay Bands (MHz max.): 1
• Relay Bandwidth (MHz max.): 20
• Output Downlink Power (All Bands) (dBm max.): 0
• Output Uplink Power (Bands 5/8/20/26/28L) (dBm max.): 22
• Output Uplink Power (Bands 1/3/7) (dBm max.): 24
• System Gain (dBm max.): 100
• Enterprise-Grade Echo Cancellation (dB min.): 30
• Return Loss (dB typ.): -8

RFI CD8195 Bull Bar Antenna Specifications


Electrical Specifications

• Frequency: MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
• Nominal Gain dBi: 6.5 / 4.5 / 5.5 / 6.5
• Turned Bandwidth: Full
• VSWR: <2.5:1
• Nominal Impedance: Ω 50
• Vertical Beamwidth: 25 / 30 / 20 / 15
• Input Power W: 10

Mechanical Specifications

• Construction / Whip Type: Fibreglass Non-Removable
• Spring Assembly: Parallel
• Mounting: 1/2” 26TPI Threaded Stud & Nut
• Length mm: 920
• Cable / Connector: 5m RG58 (9006) low loss cable (9006) terminated with SMA male connector
• Mounting Hole: Ø 13-16mm mounting hole
