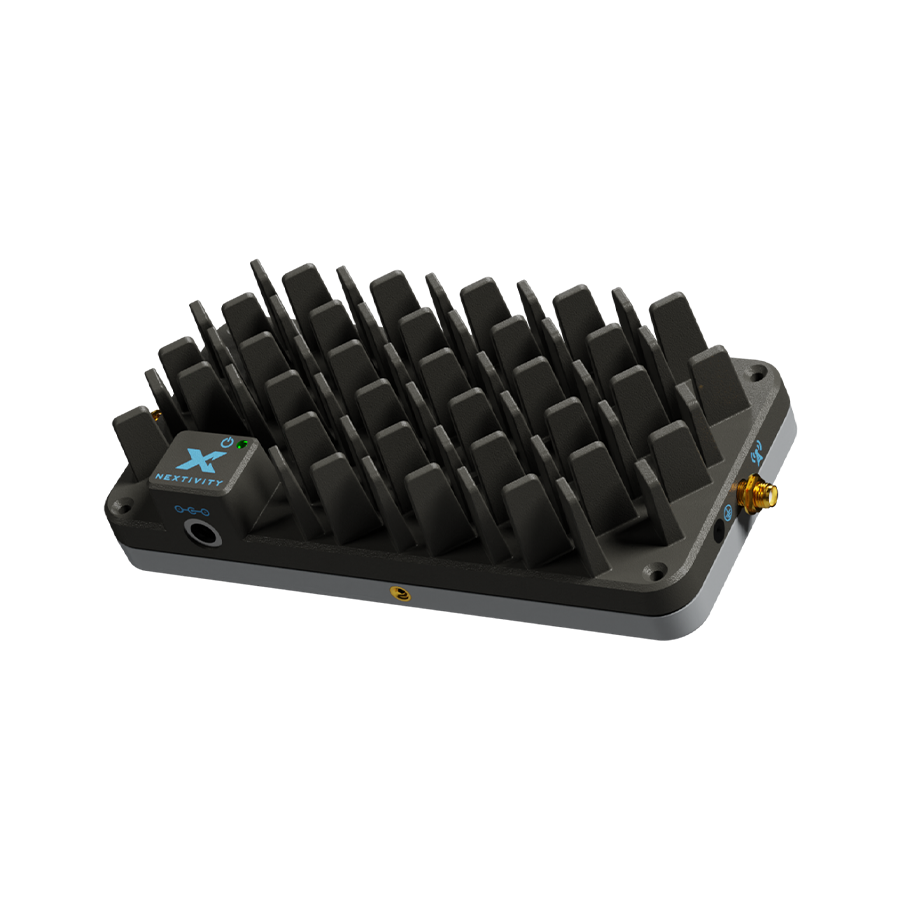

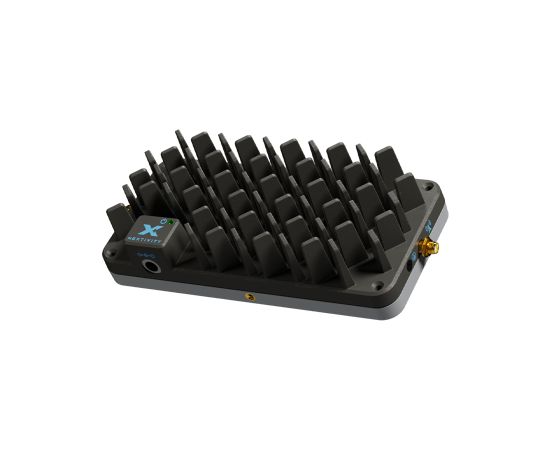

Starlink Cel-Fi Roam R41 Mobile Pack + Adhesive Antenna + Power Lead
Description
The CEL-FI ROAM R41 mobile cellular coverage solution delivers reliable 3G, 4G, and 5G connectivity inside vehicles and boats. With the latest Nextivity propriety IntelliBoost chip, ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling, texting, and streaming on the move. The system features plug-and-play operation for quick and easy set up, improving connectivity in any car, truck, RV, or boat within minutes. ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices.The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G, 4G, and 5G connectivity inside vehicles and boats.
With the latest Nextivity propriety IntelliBoost chip, ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling, texting, and streaming on the move.
The system features plug-and-play operation for quick and easy setup, improving connectivity in any car, truck, RV, or boat within minutes. ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices.
Features and benefits include:
• Deploy the unit anywhere in the network, with full frequency coverage
• Latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelized coverage for specific mobile network operator signals
• Support for 3G, 4G, and 5G dynamic spectrum sharing (DSS)
• Ease of installation with plug-and-play operation
| Specifications | ||||||||||||||||||||||
| Frequency Bands | 1/3/5/7/8/20/26/28L | |||||||||||||||||||||
| Relay Channel Bandwidths (MHz) | 5/10/15/20 | |||||||||||||||||||||
| Networks | 3G/4G/5G | |||||||||||||||||||||
| Network Protocols | WCDMA/LTE/DSS | |||||||||||||||||||||
| Network Selection | Automatically (MyWave App set to “Following”) | |||||||||||||||||||||
| Configured to authorized operator | PLMN-IDs | |||||||||||||||||||||
| Duplex Modes | FDD | |||||||||||||||||||||
| # of Relay Bands (MHz max.) | 1 | |||||||||||||||||||||
| Relay Bandwidth (MHz max.) | 20 | |||||||||||||||||||||
| Output Downlink Power (All Bands) (dBm max.) | 0 | |||||||||||||||||||||
| Output Uplink Power (Bands 5/8/20/26/28L) (dBm max.) | 22 | |||||||||||||||||||||
| Output Uplink Power (Bands 1/3/7) (dBm max.) | 24 | |||||||||||||||||||||
| System Gain (dBm max.) | 100 | |||||||||||||||||||||
| Enterprise-Grade Echo Cancellation (dB min.) | 30 | |||||||||||||||||||||
| Return Loss (dB typ.) | -8 | |||||||||||||||||||||
| Bands | ||||||||||||||||||||||
| Frequency Bands | Downlink (MHz) | Uplink (MHz) | Max. Relay BW (MHz) | |||||||||||||||||||
| 1 | 2110-2170 | 1920-1980 | 20 | |||||||||||||||||||
| 3 | 1805-1880 | 1710-1785 | ||||||||||||||||||||
| 5 | 869-894 | 824-849 | ||||||||||||||||||||
| 7 | 2620-2690 | 2500-2570 | ||||||||||||||||||||
| 8 | 925-960 | 880-915 | 15 | |||||||||||||||||||
| 20 | 791-821 | 832-862 | 20 | |||||||||||||||||||
| 26 | 859-894 | 814-849 | ||||||||||||||||||||
| 28L | 758-788 | 703-733 | ||||||||||||||||||||
| Interface | ||||||||||||||||||||||
| Donor RF Connector | SMA (f) | |||||||||||||||||||||
| Server RF Connector | SMA (f) | |||||||||||||||||||||
| DC Input | 5.5 x 2.5 mm (f) Barrel | |||||||||||||||||||||
| Device Setup | Bluetooth for WAVE App | |||||||||||||||||||||
| Power & System Status | Bi-color LED (Green/Red) | |||||||||||||||||||||
| Factory Debug only | USB 2.0 Micro-B | |||||||||||||||||||||
| System Management & SW Updates | WAVE App for iOS 11.0 or later WAVE App for Android | |||||||||||||||||||||
| Band Selection | MyWAVE App for iOS 11.0 or later MyWave App for Android | |||||||||||||||||||||
| Compliance | ||||||||||||||||||||||
| 3GPP | TS 25.143 Rel 13 | |||||||||||||||||||||
| 3GPP TS 36.143 Rel 13 | ||||||||||||||||||||||
| CE | Compliant | |||||||||||||||||||||
| RED 2014/53/EU | ||||||||||||||||||||||
| RoHS3 | EN 63000: 2018 | |||||||||||||||||||||
| ACMA/RCM | AS/NZS CISPR, 32:2013 | |||||||||||||||||||||
| Bluetooth | LE Ver 4.2 | |||||||||||||||||||||
