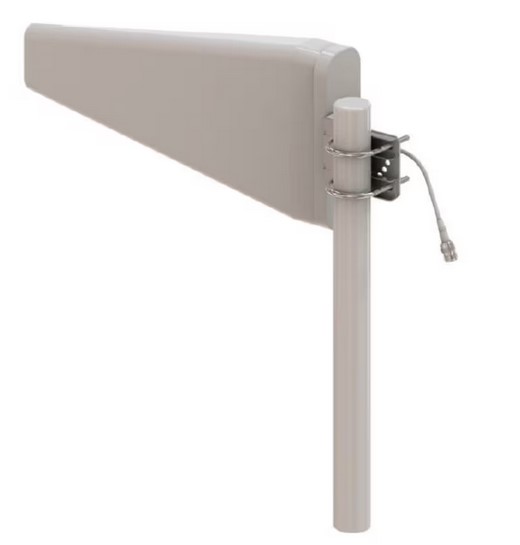

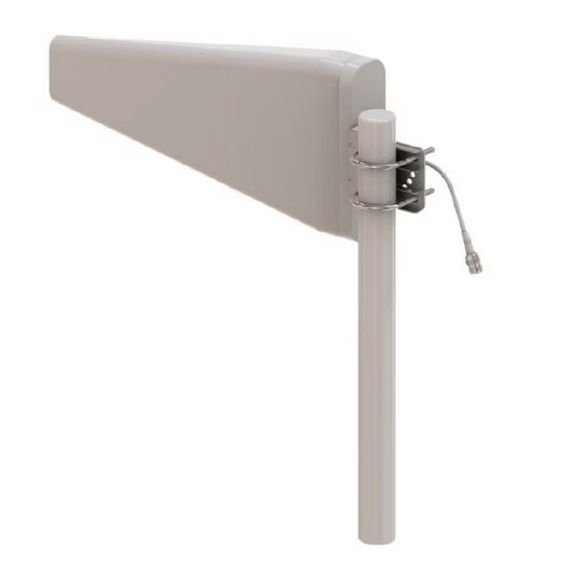

RFI LTE 11dBi LPDA Directional Enclosed Ant.
Key Features:
- Broad operating frequency range
- Compact design
- IP65
- Urban and rural areas - Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area, but just out of reach)
- Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator
- Works on most networks
- Broad operating frequency range
- Compact design
- IP65
- Urban and rural areas - Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area, but just out of reach)
- Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator
- Works on most networks
| Weight [kg] | 1 |
| Brand | RFI |
| Frequency MHz | 698-960 / 1710-2700 / 3300-4000 |
| Front Back Ratio dB | 15 |
| Horizontal Beamwidth | 90 / 75 / 54 |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Vertical Beamwidth | 66 / 58 / 42 |
| Tuned Bandwidth | Full |
| Mounting Area | Up to 52mm diameter pole |
| VSWR | <2.0:1 |
| Polarisation | Linear |
| Dimensions | 440 x 205 x 60mm |
| Nominal Gain [dBi] | 9.5 / 11.0 / 11.5 |
| Power [W] | 50 |
| Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960 |
| Connector | N(F) |
| Cable And Connector | 0.3 m RG141 cable terminated with N type female connector |
| Antenna Type | LPDA |
| Antenna Application | Terminal Antenna |
| Antenna Configuration | SISO |
