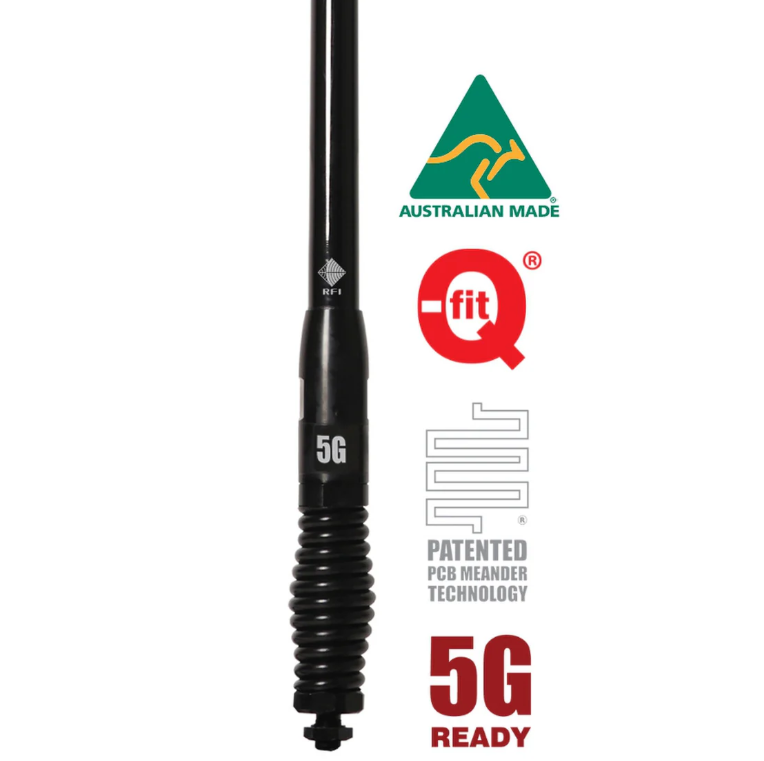

RFI 5G LTE Q-FIT MOBILE PHONE ANT. BLACK
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
Specifications
| Brand | RFI |
| Mounting | 16mm mounting hole |
| Length [mm] | 1211 |
| Frequency MHz | 698-960, 1710-2170 & 2300-2700MHz |
| Tuned Bandwidth | Full |
| Radome Diameter Mm | 22.5 - 15.6 Tapered |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 7.5 / 4.5 / 5.5 |
| Power [W] | 10 |
| Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
| Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
| Packaging | Retail Hang Sell |
| Colour | BLACK |
| Technology Type | 5GNR, LTE |
| Antenna Type | Omni, Spring Mount |
| Antenna Application | Vehicle Antenna |
| Antenna Features | Multi Band Capable, Omnidirectional |
| Frequency Band | Multi-Band 700 to 3800 |
| Cable Length (M) | 5 |
| Antenna Configuration | SISO |
