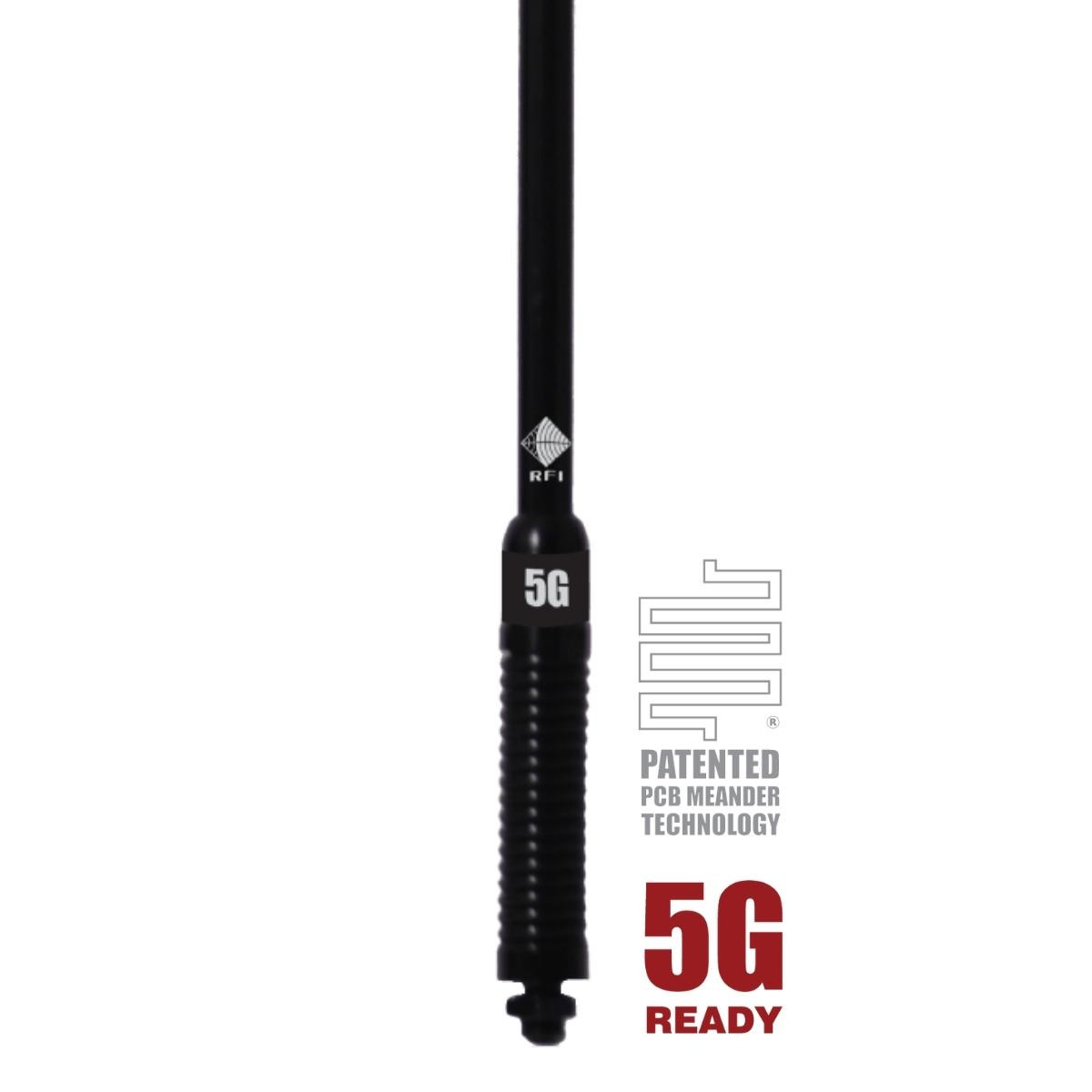

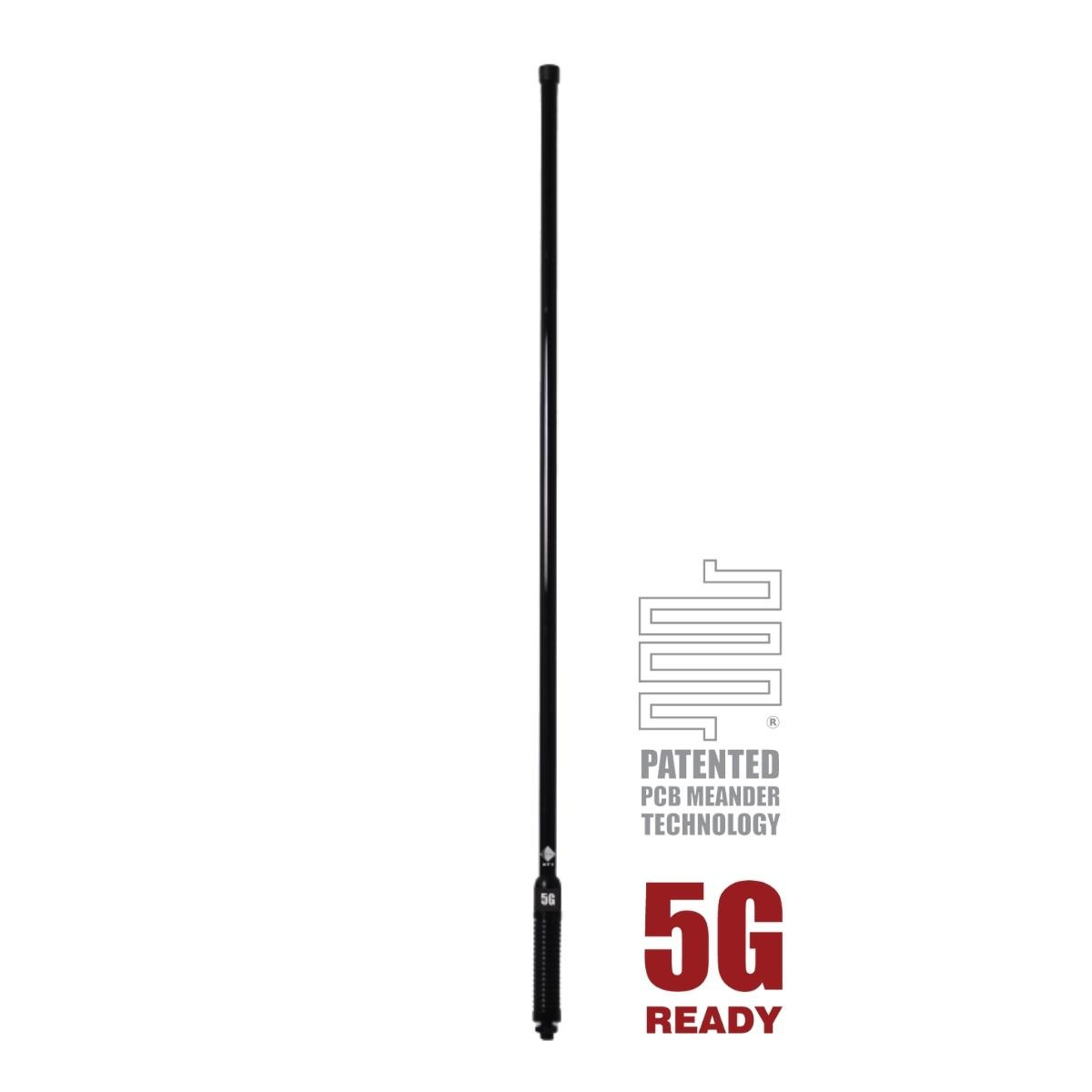

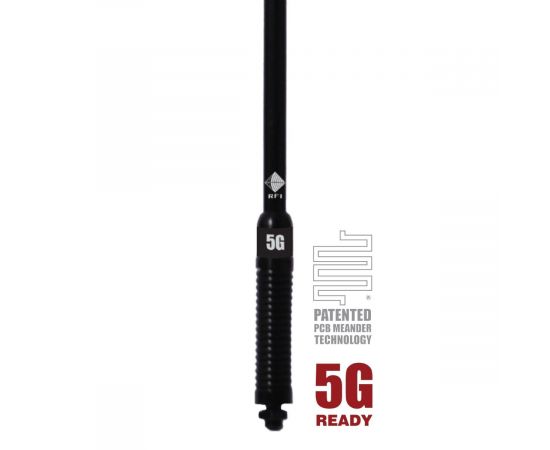

Starlink RFI 5G LTE 7.5DBI MOBILE PHONE ANT BLACK
Description
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 Series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- The CD8100 Series includes an integrated spring with threaded stud/nut for easy
installation on vehicles.
Mechanical Specs
| WHIP CONSTRUCTION | Fibreglass Radome |
| MOUNT ASSEMBLY | Fixed Spring Assembly |
| LENGTH | 1160 mm |
| CABLE / CONNECTOR | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| MOUNTING | Ø 13-16mm Hole |
| BRAND | RFI |
Electrical Specs
| FREQUENCY MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| 698-960 MHz | 7.5 |
| 1710-2170 MHz | 4.5 |
| 2300-2700 MHz | 5.5 |
| 3400-3800 MHz | 6.5 |
| VSWR | <2.5:1 |
| NOMINAL INDEPENDANCE Ω | 50 |
| HORIZONTAL BEAMWIDTH | Omni-Directional |
