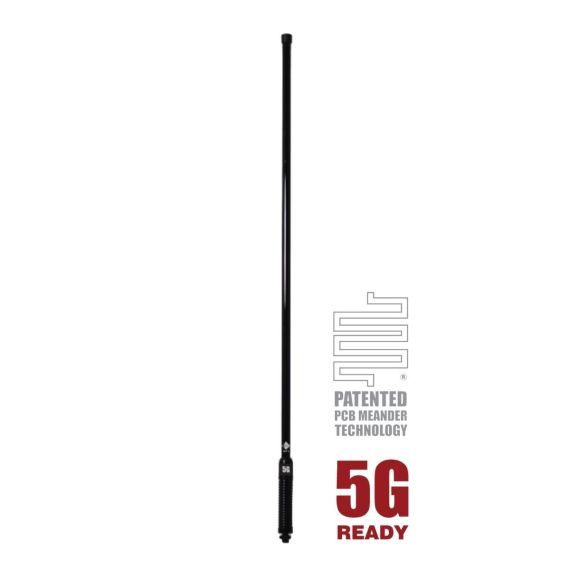

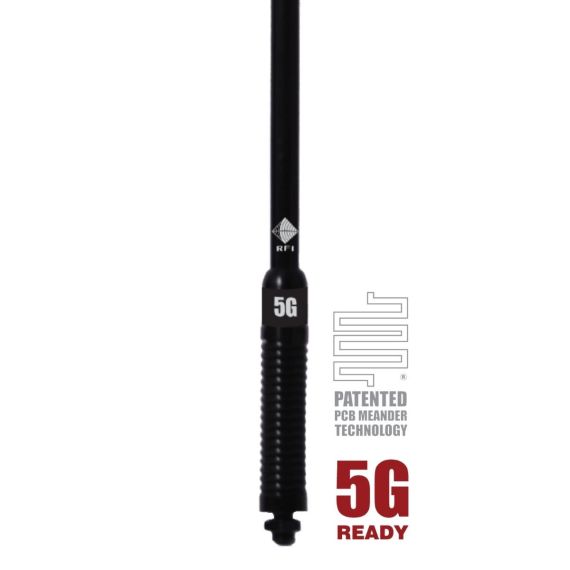

RFI 5G LTE 7.5DBI MOBILE PHONE ANT BLACK
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- The CD8100 Series includes an integrated spring with threaded stud/nut for easy
installation on vehicles.
Mechanical Specs
| WHIP CONSTRUCTION | Fibreglass Radome |
| MOUNT ASSEMBLY | Fixed Spring Assembly |
| LENGTH | 1160 mm |
| CABLE / CONNECTOR | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| MOUNTING | Ø 13-16mm Hole |
| BRAND | RFI |
Electrical Specs
| FREQUENCY MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| 698-960 MHz | 7.5 |
| 1710-2170 MHz | 4.5 |
| 2300-2700 MHz | 5.5 |
| 3400-3800 MHz | 6.5 |
| VSWR | <2.5:1 |
| NOMINAL INDEPENDANCE Ω | 50 |
| HORIZONTAL BEAMWIDTH | Omni-Directional |
