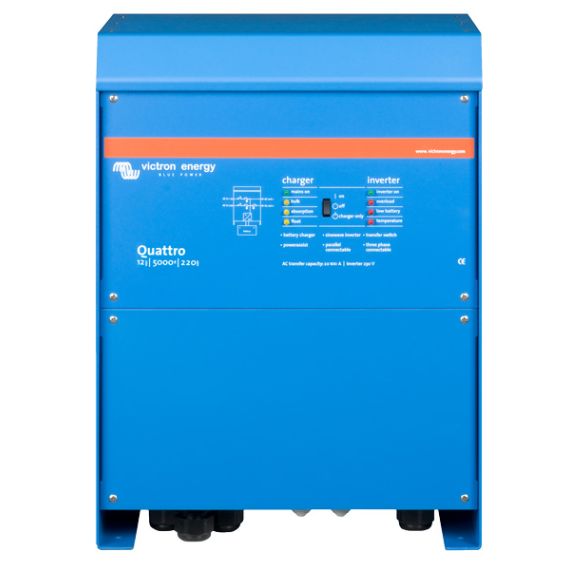

Quattro 12/5000/220-100/100 230V VE.Bus
Two AC Inputs & two AC Outputs
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique Power Assist feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattro’s can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backup generator and more
Parameters |
Values |
| Model | 12/5000/220-100/100 |
| PowerControl / PowerAssist | Yes |
| Integrated Transfer switch | Yes |
| AC inputs (2x) | Input voltage range: 187-265 VAC ,Input frequency: 45 – 65 Hz ,Power factor: 1 |
| Maximum feed through current (A) | 2x 100 |
| Input voltage range (V DC) | 9.5 - 17 V |
| Output | Output voltage: 230 VAC ± 2% , Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C (VA) | 5000 |
| Cont. output power at 25°C (W) | 4000 |
| Cont. output power at 40°C (W) | 3700 |
| Cont. output power at 65°C (W) | 3000 |
| Peak power (W) | 10000 |
| Maximum efficiency (%) | 94 |
| Zero load power (W) | 30 |
| Zero load power in AES mode (W) | 20 |
| Zero load power in Search mode (W) | 10 |
| Charge voltage 'absorption' (V DC) | 14.4 V |
| Charge voltage 'float' (V DC) | 13.8 V |
| Storage mode (V DC) | 13.2 V |
| Charge current house battery (A) | 220 |
| Charge current starter battery (A) | 4 |
| Battery temperature sensor | Yes |
| Auxiliary output (A) | 50 |
| Programmable relay | 3x |
| Protection | a - g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | 2x |
| Remote on-off | Yes |
| Common Characteristics | Operating temp.: -40 to +65˚C Humidity (non-condensing): max. 95% |
| Maximum altitude | 3500 m |
| Common Characteristics | Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21 |
| Battery-connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection | Bolts M6 |
| Weight (kg) | 34 |
| Dimensions (hxwxd in mm) | 470 x 350 x 280 |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
